Product Details
Place of Origin: Guangdong,China

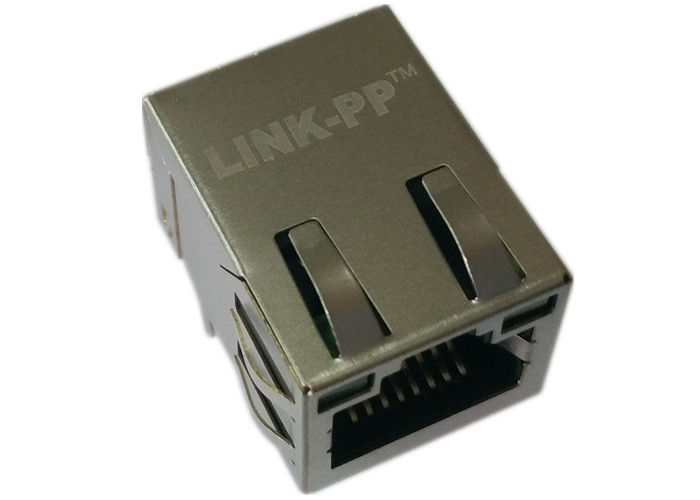

Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JXD1-0008NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
JXD1-0008NL |
Part No: |
LPJ16611AENL |
Ethernet: |
1x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Specification: |
JXD1-0008NL |
Part No: |
LPJ16611AENL |
Ethernet: |
1x 10/100Mbps |
Mounting: |
Right Angle |
Indicators: |
LEDs |
Samples: |
Available |
Electrical Specification @25℃
1.Turns Ratio(± 2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH Min
@100KHz,100mV 8mADC bias current
3.Insertion Loss:
-1.2dB Max @0.3-65MHz
4.Return Loss(dB Min):
1-30MHz:-18 40MHz:-16dB
50MHz:-14dB 60-80MHz:-12dB
5.Crosstalk:
0.3-80MHz:-30dB Min
6.Common Mode Rejection:
1-150MHz:-50dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃～+85℃
|
|
