Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: JKM-0009NL (LPJ0011BBNL)
Payment & Shipping Terms
Minimum Order Quantity: Free Samples
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: About 2 Weeks
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000000pcs / Month
Series: |
RJ45 Connector With 10/100 Base-T Integrated Magnetics |
Insertion Loss:: |
-1.0dB MAX @1-65MHz |
Turns Ratio RX: |
1CT:1CT |
Turns Ratio TX: |
1CT:1CT |
Hipot: |
1500Vrms @ 60Hz 1MIN |
Operating Temperature: |
0°C To +70°C |
Series: |
RJ45 Connector With 10/100 Base-T Integrated Magnetics |
Insertion Loss:: |
-1.0dB MAX @1-65MHz |
Turns Ratio RX: |
1CT:1CT |
Turns Ratio TX: |
1CT:1CT |
Hipot: |
1500Vrms @ 60Hz 1MIN |
Operating Temperature: |
0°C To +70°C |

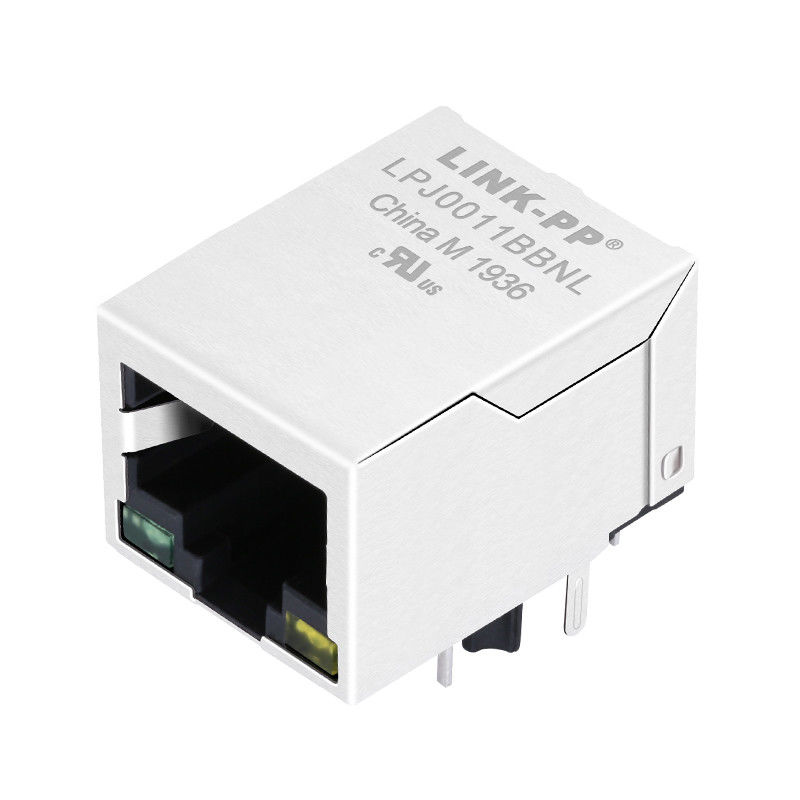

JKM-0009NL LPJ0011BBNL Single Port RJ45 Modular Jack with 10/100 Base-T Integrated Magnetics
1X1 Tab-Down RJ45 LPJ0011ABNL 10/100Mbps Fast Ethernet
Transformer RJ45 8P8C pin Integrated Magnetics Connector
Cross Equivalent JKM-0009NL Pin to Pin Replace Cost-Effective
Designed for industrial-rated applications, Meets IEEE802.3 specification
350μH minimum OCL with 8mA DC bias current
Temperature ranges from 0℃ TO 70℃
| LINK-PP Part Number | LPJ0011BBNL |
| Pulse Part Number | JKM-0009NL |
| Automotive (Y/N) | No |
| Data Rate | 100BASE-TX |
| Number of Ports | 1x1 |
| Tab Direction | Down |
| LEDs Color (L/R) |
Green/Yellow |
| Mounting | THT |
| PoE | NONE |
| Connection Style | SIDE ENTRY |
| Shielding | Shielded |
| Length |
21.34mm
|
| Width | 16mm |
| Height | 13.59mm |
Shield Material: Brass
Shield Finish: 20-40m inches Nickel over 10-20m inches Brass
Contact Material: Phosphor Bronze
Contact Plating Area: Nickel underplating and selective gold plating 15µ inches
Contact Solder Area: Tin matte finish
Housing Material: Thermoplastic
Housing Specification: UL 94 V-0
MSL Rating: 1
1. Mating Force (MAX): 5lbs./2.268kgs.
2. Unmating Force (MAX): 5Ibs./2.268kgs.
3. Durability: 750 Insertions
4. Plug to Jack Retention (MIN): 20Ibs./9.075kgs.
1. Layering ground planes is advisable. If possible, route connector/discrete module ground pins to chassis/analog ground.
2. Using BST (75Ω resistors and high voltage cap to chassis ground)
to terminate Cable side CTs is advisable for the best EMI performance (included in most connector solutions).
3. Keep signal traces from PHY to connector/discrete module as short as possible. If traces exceed 3-4 inches, pay close attention to line impedance imbalance.
4. Follow PHY manufacturer’s application notes for further layout.
