JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack

Name: JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: JKM-0010NL
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JKM-0010NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 smd connector, shielded rj45 plugs


Specification:	JKM-0010NL	Part No:	LPJ0011CNL
Ethernet:	1x10/100Mbps	Indicator:	None LEDs
Mounting:	R/A Shield	Samples:	Available Free

Specification:	JKM-0010NL
Part No:	LPJ0011CNL
Ethernet:	1x10/100Mbps
Indicator:	None LEDs
Mounting:	R/A Shield
Samples:	Available Free

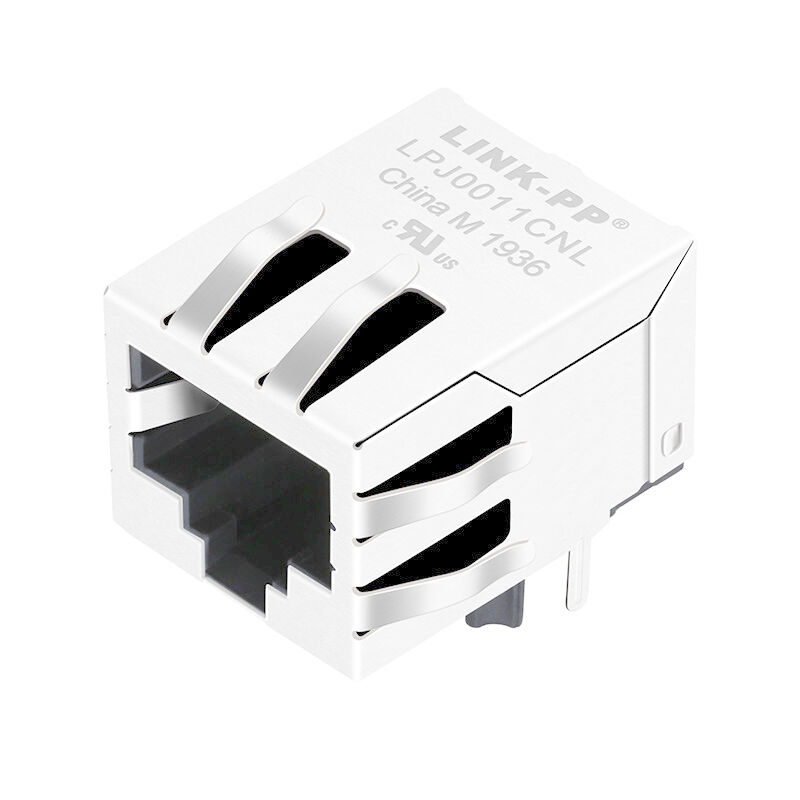

JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack

JKM-0010NL , LPJ0011CNL RJ45 1x10/100M 8P8C Connector Lan Magnetics Jack

1X1 Tab-Down RJ45 LPJ0011CNL 10/100Mbps Fast Ethernet
Transformer RJ45 8P8C pin Integrated Magnetics Connector
Cross Equivalent JKM-0010NL Pin to Pin Replace Cost-Effective
Meets IEEE802.3 specification
350μH minimum OCL with 8mA DC bias current
Temperature range from 0℃ TO 70℃

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%): 1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 0.3-100MHz
-1.5dB MAX @100-125MHz
4.Return Loss:
-15dB MIN @ 40MHz
-13.1dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 100MHz
5.Cross talk:
-45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
6.Common Mode Rejection:
-43dB MIN @ 30MHz
-37dB MIN @ 80MHz
-33dB MIN @ 100MHz
7.CMRR: -30dB Min @1-100MHz
8.Hipot Test: 1500Vrms MIN
9.Operating Temperature Range: 0℃ TO 70℃
