Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

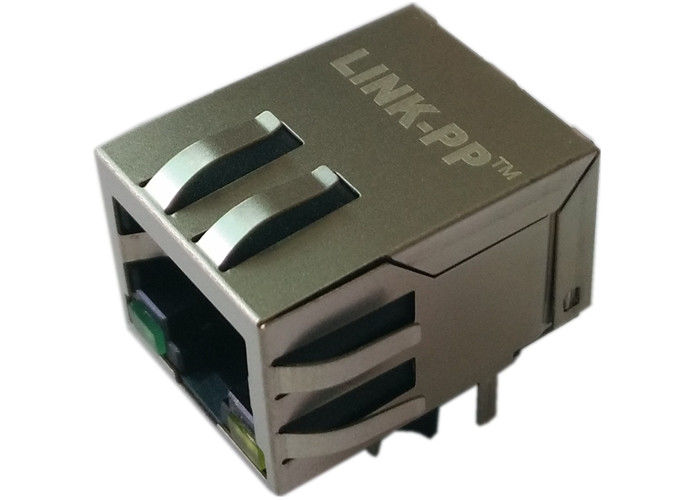

Model Number: JXD0-0001NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 50pcs/Tray,24 Trays=37*30*30CM=1200PCS=11KG/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
JXD0-0001NL |
Part No: |
LPJG4820GENL |
Ethernet: |
1x10/100/1000Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Feature: |
100% Cross Equivalent |
File: |
3D STEP IGS PDF Datasheet |
Specification: |
JXD0-0001NL |
Part No: |
LPJG4820GENL |
Ethernet: |
1x10/100/1000Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Feature: |
100% Cross Equivalent |
File: |
3D STEP IGS PDF Datasheet |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%): 1CT∶1CT
2.Inductance OCL:
350uH MIN@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃
|
|
|
