Home > products > Magnetic RJ45 Jack > JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45

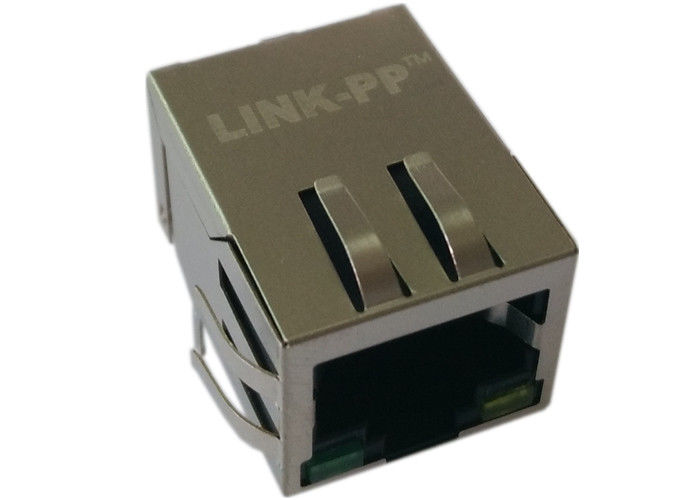

JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JXD0-0006NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price
Highlight:

rj45 with magnetics

,

rj45 magnetic jack

Specification:
JXD0-0006NL
Part No:
LPJG4887GENL
Ethernet:
1x10/100Mbit
Indicator:
G-Y LEDs
Mounting:
R/A Shield
Samples:
Available Free
Specification:
JXD0-0006NL
Part No:
LPJG4887GENL
Ethernet:
1x10/100Mbit
Indicator:
G-Y LEDs
Mounting:
R/A Shield
Samples:
Available Free
JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45
JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45
  • Ethernet pcb 8pin Rj45 connector With led: LPJ4011GENL
  • Gigabit PHY Interface With Rj45 Magnetics 1 x 10/100 Mbit Ethernet
  • Cross Equivalent Pulse JXD0-0006NL Pin to Pin Replace Cost-Effective
  • Meets IEEE802.3 specification Gigabit Ethernet Connector Pinout
  • LEDs In Lines

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%):

   1CT∶1CT
2.Inductance OCL:
350uH MIN@100KHz/0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃


JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45 0 JXD0-0006NL , LPJ4011GENL Ethernet 10/100base-T Connectivity Rj-45 1
