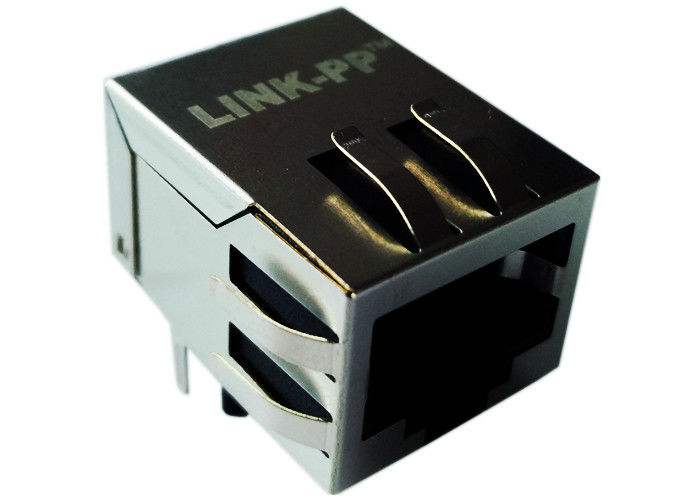

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: MIC25013-511T-LF3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
MIC25013-511T-LF3 |
Part No: |
LPJ0026GENL |
Ethernet: |
1x10/100Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Specification: |
MIC25013-511T-LF3 |
Part No: |
LPJ0026GENL |
Ethernet: |
1x10/100Mbps |
Indicator: |
G-Y LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
1.0-100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1-30MHz: -18 30-60MHz:-15
60-80MHz: -12 80-100MHz:-10
5.Cross talk(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
6.Common Mode Rejection(dB MIN):
30MHz: -40 60MHz: -35
100MHz:-30
7.Hipot Test:1500Vrms
|
|
