Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RTA-364A1R1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
RTA-364A1R1A |
Part No: |
LPJ2026KONL |
Ethernet: |
1x10/100Mbps |
Indicator: |
Orange-Green / Yellow |
Mounting: |
Side Entry, Shield |
Samples: |
Available Free |
Specification: |
RTA-364A1R1A |
Part No: |
LPJ2026KONL |
Ethernet: |
1x10/100Mbps |
Indicator: |
Orange-Green / Yellow |
Mounting: |
Side Entry, Shield |
Samples: |
Available Free |
| Category | |

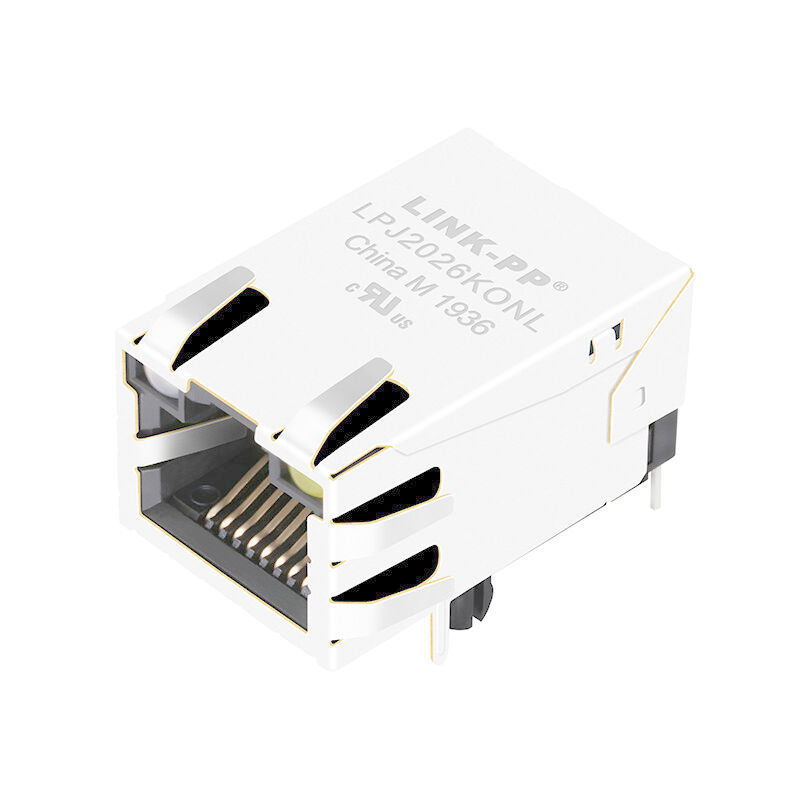

| Category | RJ45 connector -PCB Socket 8P8C (DIP) |
| Applications | 10/100 Base-T, AutoMDIX |
| Entry Angle | 90° Angle |
| LED | Orange&Green/Yellow |
| Shielding | Shielded, EMI Finger |
|
Number of Cores per Jack |
5 |
| Part Status | Active |
| Electrical | |
| Current - Maximum per Contact | 1.50A |
| Voltage - Maximum | 125V |
| Contact Resistance | 30 mΩ Max |
| Insulation Resistance | 500 MΩ Min |
| Withstanding Voltage | 1000V AC r.m.s |
| Temperature Range operating | 0ºC~+70ºC |
| Material and Plating | |
| Material-Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Material - Plating Termination | Gold |
| Material - Resin | PBT UL94V-0 |
The Part Number package:50 pcs in 1 tray, 24 tray in 1 carton, which is 40*32*33cm, 12.3KGS (1200pcs) of each carton
