Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RT1A-364A1R1A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |
RT1A-364A1R1A |
Part No: |

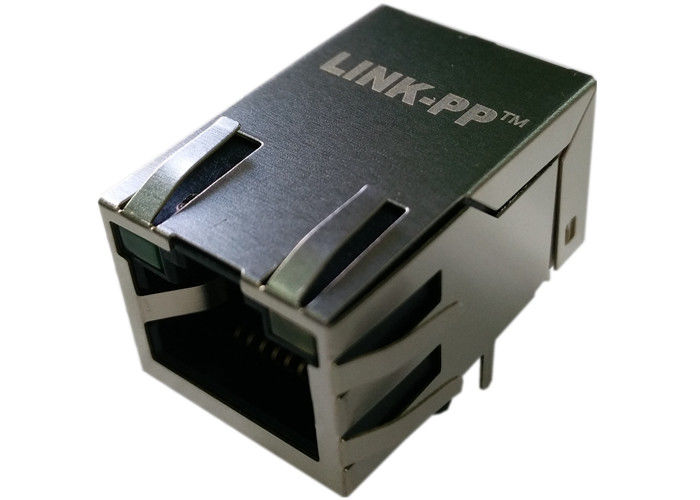

LPJ2026KONL |
Ethernet: |
1x10/100Mbps |
Indicator: |
Orange-Green / Yellow |
Mounting: |
Side Entry, Shield |
Samples: |
Available Free |
Specification: |
RT1A-364A1R1A |
Part No: |
LPJ2026KONL |
Ethernet: |
1x10/100Mbps |
Indicator: |
Orange-Green / Yellow |
Mounting: |
Side Entry, Shield |
Samples: |
Available Free |
| Turn Ratio(±2%): | TX=1CT:1, RX=1CT:CT | |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias | |
| Insertion Loss | -1.0dB MAX @ 1-65MHz | |
| Return Loss | -20dB MIN @ 1-10MHz | |
| -16dB MIN @ 10-30MHz | ||
| -12dB MIN @ 30-60MHz | ||
| -10dB MIN @ 60-100MHz | ||
| Cross talk | -40dB MIN @ 1-30MHz | |
| -35dB MIN @ 30-60MHz | ||
| -30dB MIN @ 60-100MHz | ||
| Common Mode Rejection | -30dB MIN @ 1-50MHz | |
| -20dB MIN @ 50-150MHz | ||
| Hipot Test | 1500Vrms MIN | |
| Operating Temperature Range | 0℃ TO 70℃ |
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Orange/Green | 610/565 | 1.8~2.6V | 10μA max |
| Yellow | 585 | 1.8~2.6V | 10μA max |
