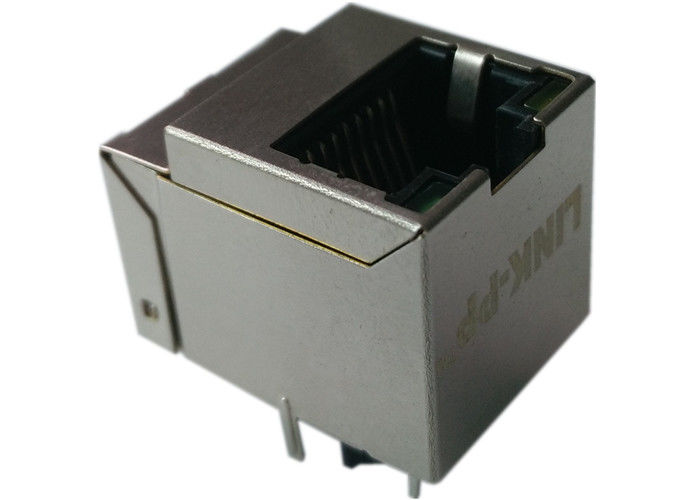

Discover the 7499010122 Vertical RJ45 Connector with integrated LAN transformer for 10/100 Base-T applications. Shielded 1x1 Cat 5, Auto MDIX, through-hole vertical mount, UL 94V-0, and reliable electrical performance.
| Parameter | Specification |
|---|---|
| Part Number | 7499010122 |
| Product Type | Integrated RJ45 Connector with LAN Transformer |
| Configuration | 1x1 (Single Port) |
| Number of Positions | 8P8C |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Mounting Angle | Vertical |
| Termination Style | Solder |
| Shielding | Shielded |
| Performance Category | Cat 5 |
| Height Above Board | 16.90 mm (0.665") |
| LED Indicator | Yes |
| LED Color | Yellow / Green |
| Applications | 10/100 Base-T, Auto MDIX |
| Compliance | IEEE 802.3u |
| UL File | E472316 |
| Parameter | Specification |
|---|---|
| Housing Material | Thermoplastic (UL 94V-0) |
| Base Material | Ferrite |
| Contact Plating | 30µ" Gold on Contact Area |
| Shield Material | Copper Alloy |
| Shield Plating | 50µ" Nickel |
| Wire Type | QPN180 |
| Parameter | Test Conditions | Value | Unit | Tolerance |
|---|---|---|---|---|
| Inductance (OCL) | 100kHz / 100mV @ 8mA DC Bias | ≥ 350 | µH | — |
| Turns Ratio (Tx/Rx) | 100kHz / 100mV | 1:1 / 1:1 | — | ±2% |
| Insertion Loss | 1–65 MHz | ≤ -1.0 | dB | — |
| Return Loss | 1–30 MHz | ≥ -18 | dB | — |
| 30–45 MHz | ≥ -16 | dB | — | |
| 45–60 MHz | ≥ -14 | dB | — | |
| 60–80 MHz | ≥ -12 | dB | — | |
| Common Mode Rejection | 1–100 MHz | ≥ -35 | dB | — |
| Crosstalk | 1–100 MHz | ≥ -35 | dB | — |
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to +70°C |
| Hipot Test | 2250 VDC / 1 minute |
| Parameter | Specification |
|---|---|
| Forward Voltage | 1.8V – 2.5V |
| Forward Current | 20 mA |
The 7499010122 Vertical RJ45 Connector is designed for stable electrical performance in 10/100 Base-T circuits.
1. Inductance: 350 µH min.
2. Turns Ratio: 1:1 (Tx) / 1:1 (Rx), ±2%
3. Insertion Loss: -1.0 dB max. at 1–65 MHz
4. Return Loss:
-18 dB min. at 1–30 MHz
-16 dB min. at 30–45 MHz
-14 dB min. at 45–60 MHz
-12 dB min. at 60–80 MHz
5. Common Mode Rejection: -35 dB min. at 1–100 MHz
6. Crosstalk: -35 dB min. at 1–100 MHz
If your project requires a Vertical RJ45 Connector with integrated magnetics, the 7499010122 provides a dependable solution for 10/100Base-TX designs. Its through-hole vertical structure, shielded construction, and Cat 5 performance make it a practical choice for manufacturers who need stable connectivity and efficient PCB integration.
The part number 7499010122 is particularly relevant for engineers, procurement teams, and buyers searching for a vertical integrated RJ45 connector that supports Ethernet applications with consistent performance and approved material construction.
The 7499010122 Vertical RJ45 Connector is a compact, shielded, integrated Ethernet solution built for 10/100 Base-T applications. With Auto MDIX support, IEEE 802.3u compliance, vertical through-hole mounting, and reliable electrical characteristics, it is a smart choice for network hardware requiring a durable and efficient RJ45 interface.
The 7499010122 is used in 10/100 Base-T Ethernet applications where an integrated RJ45 connector with transformer is needed for board-level networking designs.
Yes. The 7499010122 is a shielded RJ45 connector, which helps improve protection against electromagnetic interference.
Yes. This connector is Auto MDIX capable, making it suitable for flexible Ethernet connectivity in compatible systems.
It uses a through-hole, vertical mounting style with solder termination.
Yes. It is specified as a Cat 5 performance category connector.
