XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX

China XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier
XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX supplier

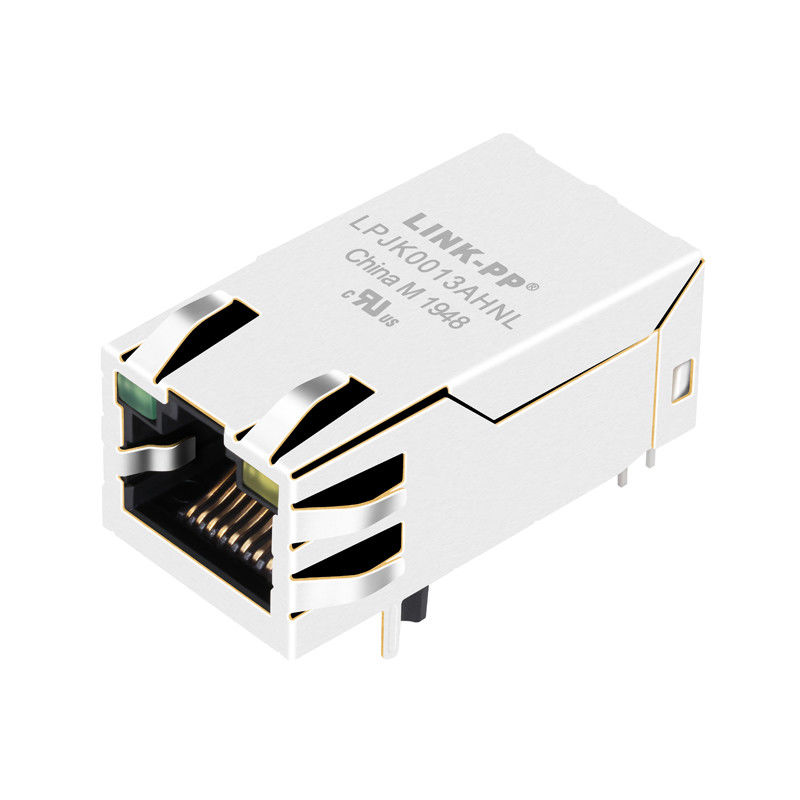

Large Image :  XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: XMPH-XARJ-8017CNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Contact Now
Detailed Product Description
Specification: XMPH-XARJ-8017CNL Part No: LPJK0013AHNL
Ethernet: 1x10/100Mbps Indicator: Green- Yellow
Mounting: Side Entry, R/A Samples: Available Free

XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX
  • 1x Fast Ethernet (10/100) : LPJK0013AHNL , Side Entry Rj45 Magnetics
  • 90 Degree Rj45 With Integrated Magnetics XMPH-XARJ-8017CNL
  • Green- Yellow LED Indicator 1x 10/100Mbps Ethernet
  • 0℃ TO 70℃ : LPJK0013AHNL
  • -40 TO +85℃: LPJK4013AHNL
  • 350uH min OCL at 8mA DC Bias
  • 6μ” Gold Plating (min) on Contacts
  • Full Temp Range ,100% Electrical Testing
  • 1500Vrms Hi-Pot
Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT XMPH-XARJ-8017CNL , LPJK0013AHNL Magnetic RJ45 Jack 1x10/100Base-TX
Inductance OCL 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test 1500Vrms MIN
Operating Temperature -40℃ TO 85℃



FAQ

1.When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 5-7 days later after payment recevied.if the PO is very big ,we need more time to produce .

2.Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.

3.I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms ect ,then we ship to you



Notes: Free sample is available !

If you need any products, please kindly send us your drawings or sample for quotation.Any inquiry and requirement, pls feel free to contact us at any time. We will support you the best reliable products. And we do not only provide the connectors for you, but also support the one-stop shoping service.
