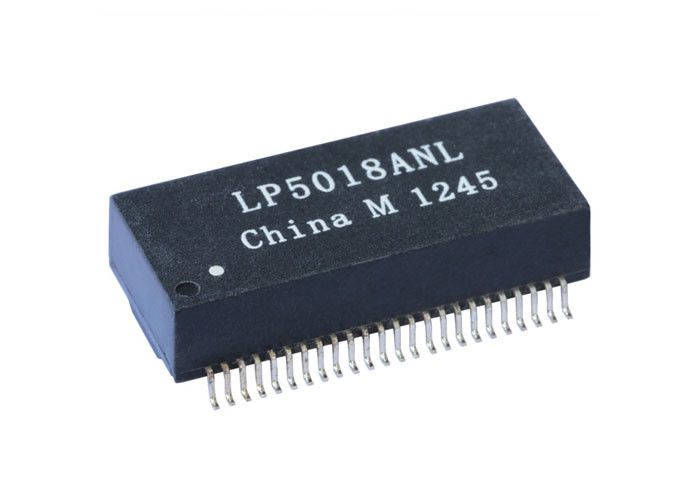

LP5018ANLE POE Transformer Quad Port Magnetics Power 10/100Base-Tx

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5018ANLE

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

power over ethernet transformer

,

poe magnetics

Specifications:
LP5018ANLE
P/N:
LP5018ANLE
Ethernet:
4 X 10/100Mbps Power
Measure:
13.16x18.59x6.12mm
Mounting:
SMD
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP5018ANLE
P/N:
LP5018ANLE
Ethernet:
4 X 10/100Mbps Power
Measure:
13.16x18.59x6.12mm
Mounting:
SMD
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP5018ANLE POE Transformer Quad Port Magnetics Power 10/100Base-Tx
LP5018ANLE POE Transformer Quad Port Magnetics Power 10/100Base-Tx



1. Coil Number: Autotransformer 16 Coils
2. Isolation Voltage:1500Vrms
3. SMD Magnetics 4 Portx Module
4. 4x10/100Base-Tx POE Transformer

5. Current 600mA Max

6. IEEE802.3af / ADSI X3.263 Complaint Performance



LP5018ANLE POE Transformer Quad Port Magnetics Power 10/100Base-Tx 0



Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side



Applications:



Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



LP5015NLE
LP5018ANL
LP5018NL
LP5018ANLE
LP5019ANL
LP5019NL

LP5018ANLE POE Transformer Quad Port Magnetics Power 10/100Base-Tx
