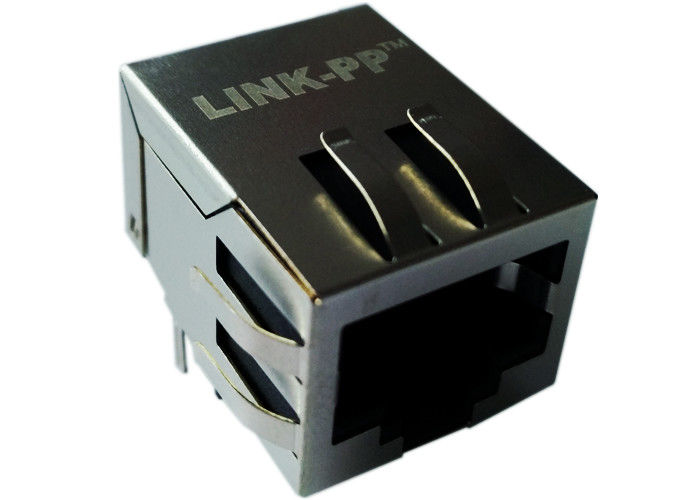

Name: LJ-H41S1B-02-F 100Base-T RJ45 Connector LPJ0037CNL Magnetic
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LJ-H41S1B-02-F
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LJ-H41S1B-02-F

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    100Base-T RJ45 Connector, RJ45 Magnetic Jack, LJ-H41S1B-02-F


Specifications:	LJ-H41S1B-02-F	P/N:	LPJ0037CNL
Mechanical:	21.25x15.90x13.30mm	Application:	10/100Base-T
Termination:	Solder	Samples:	Free

Specifications:	LJ-H41S1B-02-F
P/N:	LPJ0037CNL
Mechanical:	21.25x15.90x13.30mm
Application:	10/100Base-T
Termination:	Solder
Samples:	Free

LJ-H41S1B-02-F 100Base-T RJ45 Connector LPJ0037CNL Magnetic

LJ-H41S1B-02-F | LPJ0037CNL Magnetic RJ45 Jack | 1-Port 10/100Base-T Integrated Connector

Key Features

1. Standards Compliance:

IEEE 802.3u (Fast Ethernet 10/100Base-T) compliant
FCC standard-compliant for electromagnetic compatibility
Fully RoHS compliant for environmental safety

2. Integrated Design:

RJ45 jack combined with magnetic components to reduce PCB footprint
Built-in transformer and EMI suppression for enhanced signal quality
Optimized to reduce EMI radiation and improve overall system EMC performance

3. Performance & Reliability:

Designed for 10/100BASE-T transmission over Cat5/UTP-5 cable
Operating temperature: 0℃ to +70℃
Storage temperature: -25℃ to +85℃

4. Compatibility:

Equivalent to LJ-H41S1B-02-F
Pin-to-pin compatible with standard RJ45 magnetic jacks
Drop-in replacement for common Ethernet magnetic connectors

Magnetic RJ45 Jack Applications

Ethernet Switches & Routers
Servers & Network Storage
Industrial Ethernet Equipment
Embedded Networking Systems
Telecom Infrastructure
Ethernet switches and routers
Network interface cards (NICs)
Embedded Ethernet controllers
Industrial control systems
VoIP phones and IP surveillance devices
Consumer electronics with Ethernet connectivity
