Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XMH-T16-071-A62-013-MC
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |

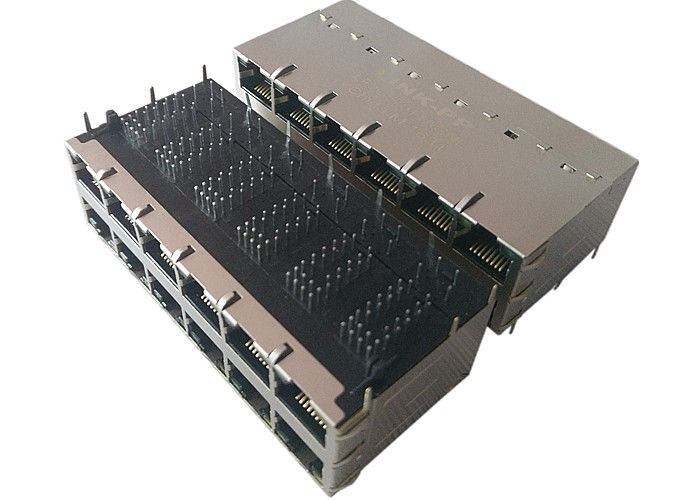

XMH-T16-071-A62-013-MC |
Part No: |
LPJG67759A55NL |
Ethernet: |
12x 1GbE Ports |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
Specification: |
XMH-T16-071-A62-013-MC |
Part No: |
LPJG67759A55NL |
Ethernet: |
12x 1GbE Ports |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available |
| ELECTRICAL SPECFICATIONS @25℃ |
| 1.Turn Ratio(± 2%): |
| TX=1CT:1CT RX=1CT:1CT |
| 2.Inductance OCL: 350uH MIN |
| @100KHz/0.1V,8mA DC Bias |
| 3.Insertion Loss: |
| -1.0dB MAX @ 1.0-65MHz |
| 4.Return Loss: |
| -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz |
| -12dB MIN @ 30-60MHz |
| -10dB MIN @ 60-100MHz |
| 5.Cross talk: |
| -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz |
| -30dB MIN @ 60-100MHz |
| 6.Common Mode Rejection: |
| -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz |
| 7.Hipot Test: 1500Vrms MIN |
