Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield

Name: Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield
Brand: LINK-PP
SKU: LPJ0017GANL
Rating: 4.6 (153 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0017GANL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Specifications:	LPJ0017GANL	P-N:	LPJ0017GANL
Ethernet:	1x 10/100Base Auto	RoHS Compliant:	Yes
Indicator:	G-Y LEDs	Samples:	Free

Specifications:	LPJ0017GANL
P-N:	LPJ0017GANL
Ethernet:	1x 10/100Base Auto
RoHS Compliant:	Yes
Indicator:	G-Y LEDs
Samples:	Free

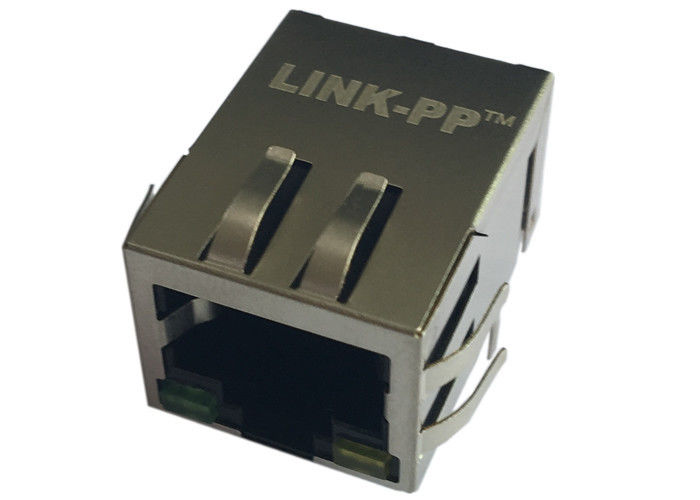

Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield

Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield

1.10/100 Base-T LPJ0017GANL

2.1X1 Tab-down Magnetic RJ45 Jack

3.Through hole RJ45 modular jack LINK-PP

4. 21.25mm length RJ45 Magjack PCB Mounting Connector to Ethernet

Turn Ratio(±2%):	TX=1CT:1CT RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
