Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: JX20-0252NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
JX20-0252NL |
Equivalent: |
LPJ27335A48NL |
Mechanical: |
31.70x31.50x25.79mm |
Apllication: |
10/100Base-T, AutoMDIX |
Mounting: |
THT,R/A |
Samples: |
Available |
Specifications: |
JX20-0252NL |
Equivalent: |
LPJ27335A48NL |
Mechanical: |
31.70x31.50x25.79mm |
Apllication: |
10/100Base-T, AutoMDIX |
Mounting: |
THT,R/A |
Samples: |
Available |
|
Specifications |
P-N |
Manufacturer |
Description |
|
JX20-0252NL |
LPJ27335A48NL |
LINK-PP |
2x2 10/100 Stack Jack |
|
Series |
Connector Type |
Applications |
Mounting Type |
|
Connectors, Interconnects |
LINK-PP Rj45 |
10/100Mbps |
Thru-Hole |
|
Orientation |
Termination |
LED Color |
Shielding |
|
90° Angle (Right) |
Solder |
GO/GO |
Shielded,EMI-Finger |

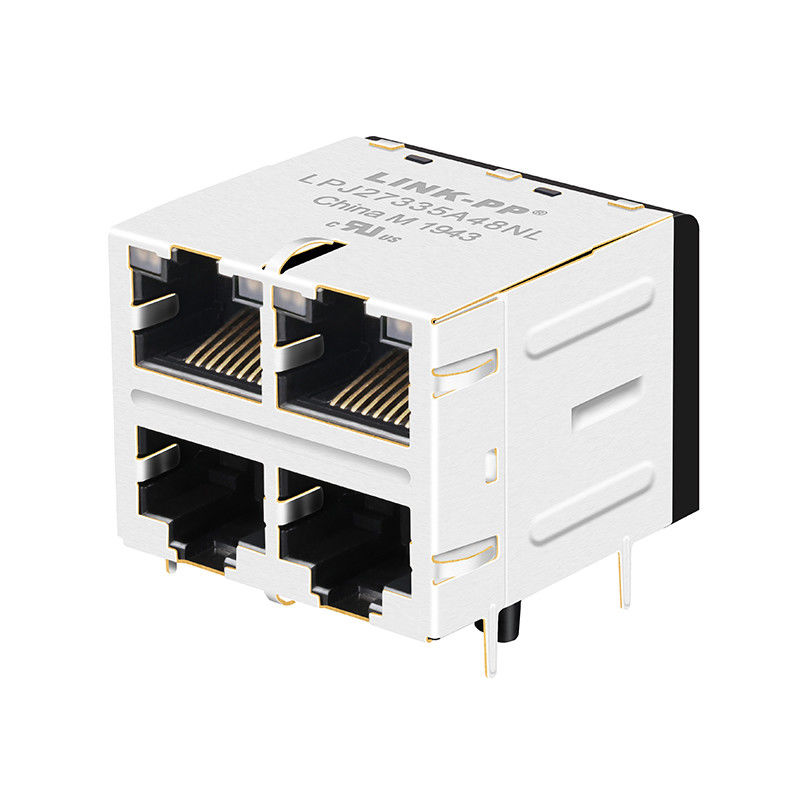

LPJ27335A48NL 4 Port RJ45 Magjack Connector Through Hole 10/100Base-T, AutoMDIX
|
LPJ27335A48NL Attributes |
|
|
Category |
Connectors, Interconnects |
|---|---|
|
Family |
Modular Connectors - Jacks With Magnetics |
|
Manufacturer |
Pulse Electronics Corporation |
|
Series |
PULSEJACK™ JX20-0252NL Cross Part |
|
Packaging |
Tray |
|
Part Status |
Active |
|
Connector Type |
RJ45 |
|
Number of Ports |
4 |
|
Number of Rows |
2 |
|
Applications |
10/100Base-T, AutoMDIX |
|
Mounting Type |
Through Hole |
|
Orientation |
90° Angle (Right) |
|
Termination |
Solder |
|
Height Above Board |
1.005" (25.53mm) |
|
LED Color |
Green, Orange - Green, Orange |
|
Number of Cores per Jack |
4 |
|
Shielding |
Shielded, EMI Finger |
|
Features |
Board Guide |
|
Tab Direction |
Up and Down |
|
Contact Material |
Phosphor Bronze |
|
Contact Finish |
Gold |
|
Contact Finish Thickness |
50µin (1.27µm) |
|
Shield Material |
Copper Alloy |
|
Housing Material |
Thermoplastic |
|
Operating Temperature |
-40°C ~ 85°C |
