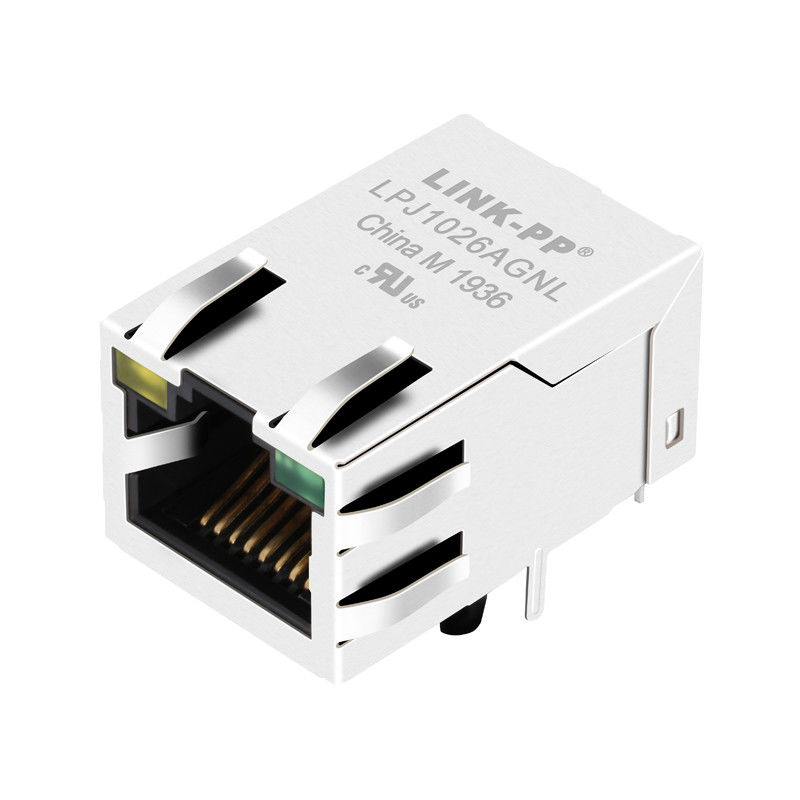

LPJ1026AGNL Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LED Indicator

Name: LPJ1026AGNL Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LED Indicator
Brand: LINK-PP
SKU: LPJ1026AGNL
Rating: 4.8 (162 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ1026AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


Specifications:	JH1026A7R	P-N:	LPJ1026AGNL
Ethernet:	1x 10/100Mbps Port	Mounting:	PCB,THT
Indicator:	G-Y LEDs	Samples:	Free

Specifications:	JH1026A7R
P-N:	LPJ1026AGNL
Ethernet:	1x 10/100Mbps Port
Mounting:	PCB,THT
Indicator:	G-Y LEDs
Samples:	Free

LPJ1026AGNL Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LED Indicator

LPJ1026AGNL Magnetic RJ45 Jack 10/100 BaseT Ethernet Socket LED Indicator

1.5 Coils Magnetic Rj45 LPJ1026AGNL / JH1026A7R

2.1X1 Tab-down Magnetic RJ45 Jack W/ EMI-fingers

3.Through hole RJ45 modular jack 1x 10/100 Base-TX

4. 25.25 mm length RJ45 Magjack PCB Mounting Connector to Ethernet

Turn Ratio(±2%):	TX=1CT:1 RX=1CT:CT
Inductance OCL	350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss	-1.0dB MAX @ 1-65MHz
Return Loss	-20dB MIN @ 1-10MHz
	-16dB MIN @ 10-30MHz
	-12dB MIN @ 30-60MHz
	-10dB MIN @ 60-100MHz
Cross talk	-40dB MIN @ 1-30MHz
	-35dB MIN @ 30-60MHz
	-30dB MIN @ 60-100MHz
Common Mode Rejection	-30dB MIN @ 1-50MHz
Common Mode Rejection	-20dB MIN @ 50-150MHz
Hipot Test	1500Vrms MIN
