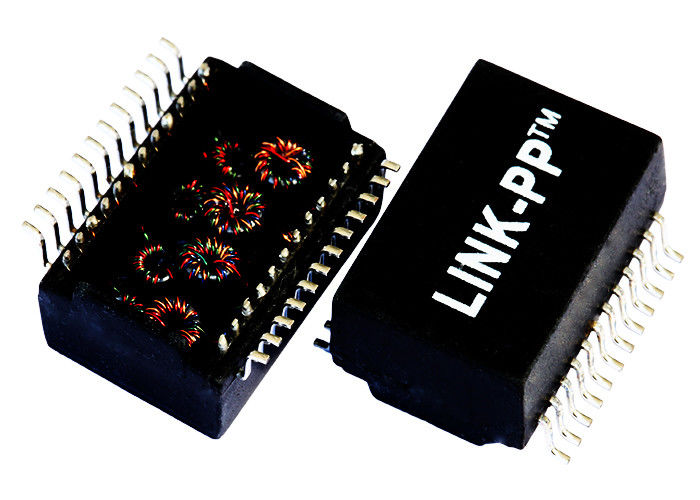

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 15FB-83NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
15FB-83NL |
Part No: |
LP6096ANL |
Interface: |
100/1000Mbps Power Over Ethernet+ |
Family: |
Telecom Transformer |
Standards: |
IEEE 802.3at |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
15FB-83NL |
Part No: |
LP6096ANL |
Interface: |
100/1000Mbps Power Over Ethernet+ |
Family: |
Telecom Transformer |
Standards: |
IEEE 802.3at |
Samples: |
Free Available |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Electrical Specification @25℃
1.Insertion Loss(dB Max):
0.1MHz: -1.2
1-125MHz: -2.0
2.Return Loss(dB Min):
1-40MHz: -16
40-100MHz: -10
3.Cross Talk(dB Min):
30MHz:-43
60MHz:-37
100MHz:-33
4.CMRR(dB Min):
30MHz: -30
200MHz: -15
5.DCR Balance: 1Ω %%P0.05Ω
6.OCL:
(1) 350uH Min @20mA DC Bias
(2) 120uH Min @30mA DC Bias
7.Temperature rise of 35℃ when supplying
1 Amp continuous over 4 pairs
8.Hipot:1500Vrms
9.Operating Temperature: -40℃～+85℃.
