Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: E5908-0T0343-L
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
E5908-0T0343-L |
Equivalent: |
LPJE17208XNNL |

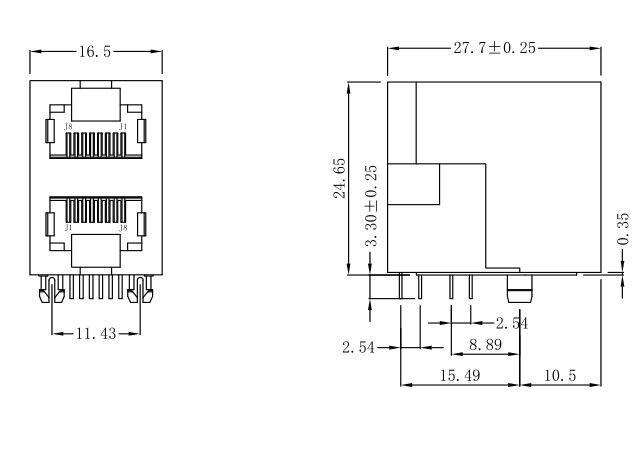

Mechanical: |
27.70x16.50x24.65mm |
Apllication: |
10/100Base-T, AutoMDIX |
Mounting: |
THT,R/A |
LEDS: |
Flexible |
Specifications: |
E5908-0T0343-L |
Equivalent: |
LPJE17208XNNL |
Mechanical: |
27.70x16.50x24.65mm |
Apllication: |
10/100Base-T, AutoMDIX |
Mounting: |
THT,R/A |
LEDS: |
Flexible |
NOTES: RJ45 DOUBLE DECK GANG PCB JACK
Electrical:
1.Voltage rating : 125 VAC RMS
2.Current Rating : 1.5 AMP
3.Contact resistance : 50 Milliohms Max
4.Insulation resistance : 1000 Megohms Min @500VDC
5.Dielectric strength : 1000 VAC RMS 60Hz,1MIN.
MECHANICAL:
1.Housing & Insert Material : PBT UL94V-0.
2.Contact Material : Diameter 0.45mm Phosphor Bronze
Gold Plating Over Nickel.
3.Mating/Unmating Force : 2.2KG.F Max.
4.Retention Strength : 7.7KG.F Min Between Jack and Plug.
5.Operating Life : 750 Cycles Min.
ENVIRONMENTAL:
1.Storage : -40℃ ～ +85℃
2.Operation : -40℃ ～ +85℃.
UL Certification: File Number E484635
Other parts:
LPJE17208XNNL
LPJE17208NNL
LPJE17208CNL
LPJE17208DNL
