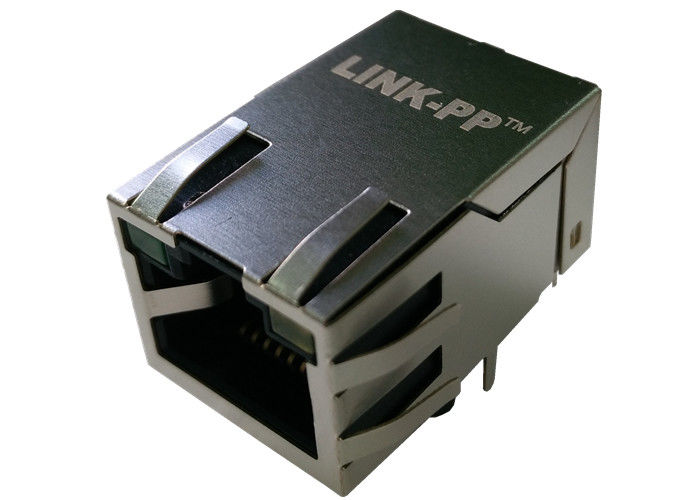

Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 48025-0002
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specifications: |
48025-0002 |
P-N: |
LPJ1035AHNL |
Ethernet: |
1x 10/100Mbps Port |
Mounting: |
PCB,THT |
Indicator: |
G-Y LEDs |
Samples: |
Free |
Specifications: |
48025-0002 |
P-N: |
LPJ1035AHNL |
Ethernet: |
1x 10/100Mbps Port |
Mounting: |
PCB,THT |
Indicator: |
G-Y LEDs |
Samples: |
Free |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(± 2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
7.Hipot Isolation: 1500Vrms
8.Operating Temperature Range: 0℃ TO 70℃
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact
area.
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
5.UL Certification: File Number E484635
