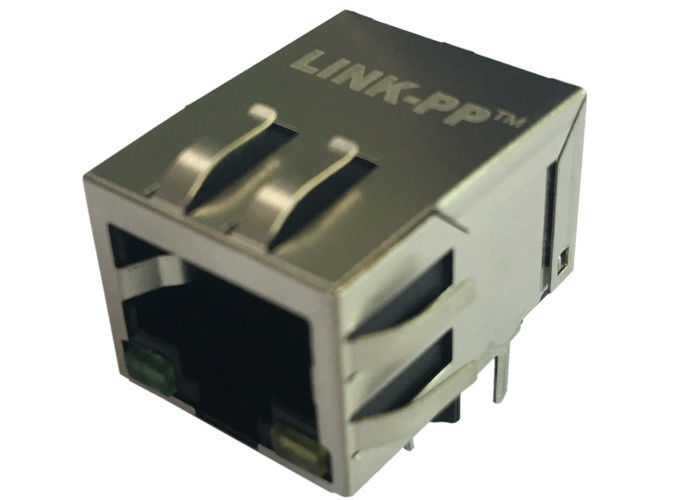

13F-64GYD2PL2NL 10/100 BASE-T Single Port RJ45 Jack Magnetics LPJ4011GBNL

Name: 13F-64GYD2PL2NL 10/100 BASE-T Single Port RJ45 Jack Magnetics LPJ4011GBNL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 13F-64GYD2PL2NL
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 13F-64GYD2PL2NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    13F-64GYD2PL2NL, Single Port RJ45 Jack, RJ45 with Magnetics


Part Number:	13F-64GYD2PL2NL	Equivalent To:	LINK-PP LPJ4011GBNL
Speed:	10/100 BASE-T	Port:	Single Port
LED Indicators:	Green-Yellow	Samples:	Free Is Available

Part Number:	13F-64GYD2PL2NL
Equivalent To:	LINK-PP LPJ4011GBNL
Speed:	10/100 BASE-T
Port:	Single Port
LED Indicators:	Green-Yellow
Samples:	Free Is Available

13F-64GYD2PL2NL 10/100 BASE-T Single Port RJ45 Jack Magnetics LPJ4011GBNL

LPJ4011GBNL Equivalent / Cross Pin to Pin compatible to 13F-64GYD2PL2NL

Materials of 13F-64GYD2PL2NL RJ45 Jack with Integrated Magnetics:

Housing Material:

Material: Nylon GF (Fr50)
Flammability Rating: UL94V-0
Color: Black

Insert Material:

Material: Phosphor Bronze C5210 EH (0.35mm Thickness)
Plating:

(1) Nickel

(2) 100% Sn

(3) Gold Plating (6µ")

Plate Material:

Material: PBT GF
Flammability Rating: UL 94V-0

Contact Pin Material:

Material: Phosphor Bronze C5210 EH (0.35mm Thickness)
Plating:

(1) Nickel

(2) 100% Sn

Shielding Material:

Material: Brass C2680 H (0.25mm Thickness)
Plating: Nickel

Operating Life:

Minimum Cycles: 750

Single Port RJ45 Jack Environmental Condition:

Storage Temperature: -40°C to +85°C
Operating Temperature: -40°C to +85°C
Wave Soldering Temperature: 230°C to 250°C (3-5 seconds)
Compliance: Mates with modular plug conforming to FCC Part 68.

ELECTRICAL SPECFICATIONS@25 ℃:

Turn Ratio (±5%): TX & RX = 1CT:1CT
Inductance (100KHz/0.1V @ 8mA): 350µH Min
Insertion Loss (dB Max): -1.0dB (0.3-100MHz)
Return Loss (dB Min):
- -18dB (1-30MHz)
- -16dB (40MHz)
- -12dB (50MHz)
- -10dB (60-80MHz)
Cross Talk (dB Min):
- -40dB (30MHz)
- -35dB (60MHz)
- -30dB (100MHz)
CMR (dB Min):
- -30dB (30MHz)
- -20dB (60MHz)
- -20dB (100MHz)
Hi-Pot: 1500Vrms / 0.5mA / 2 seconds
RoHS Compliance: Yes
