43F-1201DYD2NL / LPJU3101AONL RJ45 USB Connector 10/100 Magnetic

China 43F-1201DYD2NL / LPJU3101AONL RJ45 USB Connector 10/100 Magnetic supplier
43F-1201DYD2NL / LPJU3101AONL RJ45 USB Connector 10/100 Magnetic supplier 43F-1201DYD2NL / LPJU3101AONL RJ45 USB Connector 10/100 Magnetic supplier

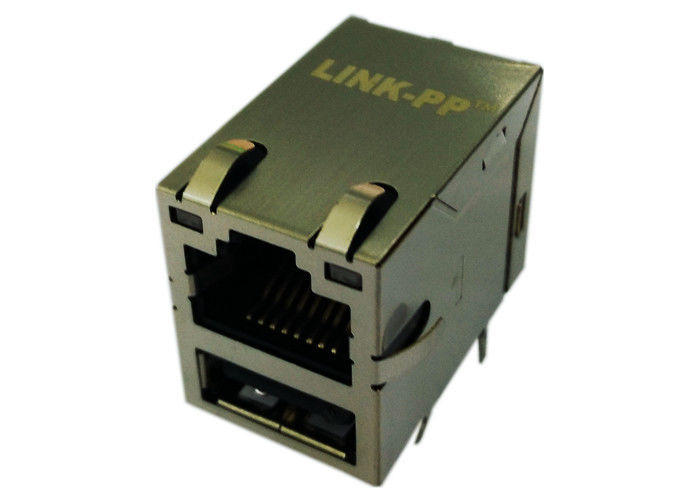

Large Image :  43F-1201DYD2NL / LPJU3101AONL RJ45 USB Connector 10/100 Magnetic

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 43F-1201DYD2NL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 2500K-PCS/Month
Contact Now
Detailed Product Description
Specification: 43F-1201DYD2NL P/N: LPJU3101AONL
Schematic: 4 Coils, 1CT:1CT Ethernet: 1x10/100Base-Tx
Mechanical: 28.35x16.80x20.90mm Samples: Free
Updated: LPJU3101-7AONL

43F-1201DYD2NL | LPJU3101AONL RJ45 USB Connector 10/100 Magnetic



  1. LAN interface suitable for 10/100Base-TX applications
  2. LPJU3101AONL  LINK-PP USB Rj45 Jack
  3. Equivalent / Pin to pin 43F-1201DYD2NL / LPJU3101-7AONL
  4. RJ45/USB stacked design saves on PCB real estate
  5. USB module complies with USB 2.0 standards and meets CAT5 Fast Ethernet industry performance standard
  6. Magnetics are 100% electrically tested for HI-POT and continuity
  7. Meets or exceeds IEEE 802.3 and ANSI X3.263 standards including 350 µH minimum OCL with 8 mA bias
  8. LPJU3101-7AONL

Mechanicals
Housing Material:
MATERIAL:NYLON GF (Fr50) UL94V-0 STANDARD COLOR:BLACK
Insert Material:
MATERIAL:Phos–Bronze C5210 EH---0.35mm Thickness
Insert –PBT GF UL94V-0
1.PLATING(1) NICKEL
2.PLATING(2) 100%Sn
3.PLATING(3) GOLD (3u "~50u ")
Contact pin Material:
MATERIAL: Phos–Bronze C5191 ---0.35mm Thickness
1.PLATING(1) NICKEL
2.PLATING(2) 100%Sn



Shielding Material:
BRASS C2680 PLATING NICKEL
Operating Life:750 Cycles MIN.
Solder Tail Tin Plated Contact Area 1u" Gold Plated
En vironmental
1.Storage Temp:-40 ℃TO +85 ℃.
2.Operating Temp: 0 ℃TO +70 ℃.
3. MATES WITH MODULAR PLUG CONFORMING TO
FCC PART 68,SUBPARTF.
