Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 10118077-523B010LF
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specifications: |
10118077-523B010LF |
Equivalent: |
LPJE108XAGNL |
Mechanical: |
31.70x31.50x25.79mm |
Apllication: |
Cat3,Cat5,Cat5e, AutoMDIX |
Mounting: |
THT,R/A |
Samples: |
Available |
Specifications: |
10118077-523B010LF |
Equivalent: |
LPJE108XAGNL |
Mechanical: |
31.70x31.50x25.79mm |
Apllication: |
Cat3,Cat5,Cat5e, AutoMDIX |
Mounting: |
THT,R/A |
Samples: |
Available |
|
Specifications |
P-N |
Manufacturer |
Description |
|
10118077-523B010LF |
LPJE108XAGNL |
LINK-PP |

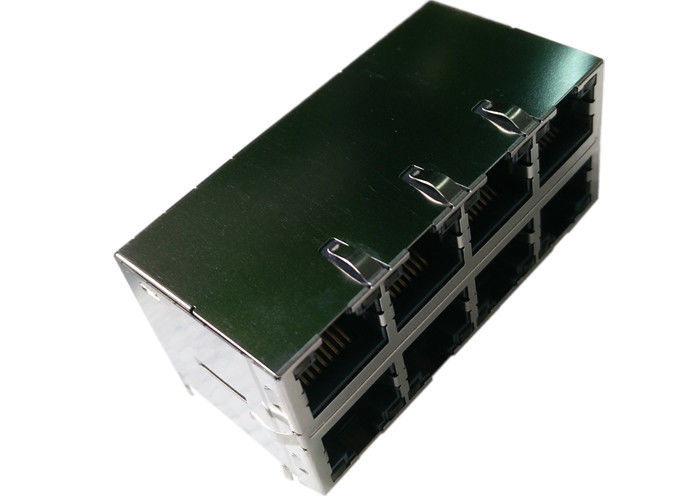

2x4 8P8C Stack Jack |
|
Series |
Connector Type |
Applications |
Mounting Type |
|
Connectors, Interconnects |
LINK-PP Rj45 |
Cat3,5,5e |
Thru-Hole |
|
Orientation |
Termination |
LED Color |
Shielding |
|
90° Angle (Right) |
Solder |
GO/GO |
Shielded,EMI-Finger |
NOTES:
MACHANICAL: 10118077 Series Equivalent Cross Pin to pin part replacement Made in China
1.HOUSING MATERIAL :GLASS FILLED POLYESTER OR HIGH TEMP. UL94V-0.
2.CONTACT MATERIAL :PHOSPHOR BRONZE t=0.35mm.
3.PLATING :CONTACT AREA-SELECTIVE GOLD PLATING.
TAILS-PLATED TIN OVER NICKEL.
4.OPERATING LIFE :750 CYCLES MIN
5.PCB RETENTION PRE-SOLDER :1 LB MIN
6.PCB RETENTION POST-SOLDER :10 LBS MIM
7.LED SIZE :3.2*2.0*4.0*P=2.29mm
ELECTRICAL:
1.VOLTAGE RATING :125VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :50 MILLIOHMS MAX.
4.INSULATION RESISTANCE :1000MEGOHMS MIN @ 500V DC.
5.DIELECTRIC STRENGTH :1000V AC RMS 60Hz. 1MIN.
ENVIRONMENTAL:
1.STORAGE :-40℃ +85℃.
2.OPERATION :-40℃ +85℃.
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68, SUBPART F.
