2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y

China 2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y supplier
2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y supplier 2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y supplier

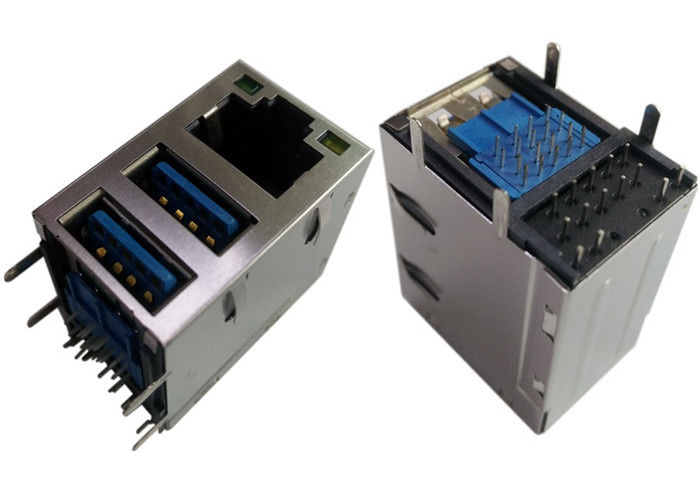

Large Image :  2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: LPJU1608AHNL

Payment & Shipping Terms:

Minimum Order Quantity: 200/500//1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 2500K-PCS/Month
Contact Now
Detailed Product Description
Specification: LPJU1608AHNL P/N: LPJU1608AHNL
Schematic: 8 Coils, 1CT:1CT Ethernet: 1x10/100/1000 Base-T
Mechanical: 27.35x18.90x31.00mm Samples: Available

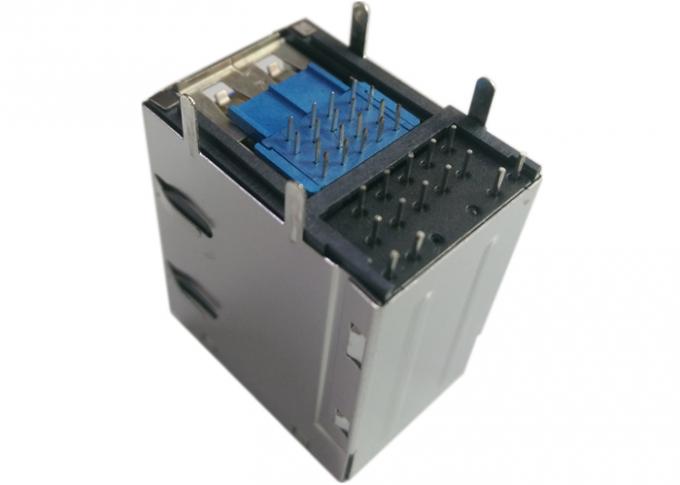

2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y
  1. USB3.0 Rj45 Coon Jack 1000Base-T Integrated
  2. Lan Rj45 interface suitable for 10/100/1000Base-T applications
  3. Gigabit Rj45+2xUSB3.0 Stacked Ethernet Jacks
  4. LPJU1608AHNL LINK-PP USB3.0 Coon Rj45 Jack
  5. RJ45/USB stacked design saves on PCB real estate
  6. USB module complies with USB3.0
  7. Magnetics are 100% electrically tested for HI-POT and continuity
  8. 10/100/1000Mbps supported RJ45 Macjack with USB 3.0 Connector

Mechanicals
Housing Material:
MATERIAL:NYLON GF (Fr50) UL94V-0 STANDARD COLOR:BLACK
Insert Material:
MATERIAL:Phos–Bronze C5210 EH---0.35mm Thickness
Insert –PBT GF UL94V-0
1.PLATING(1) NICKEL
2.PLATING(2) 100%Sn
3.PLATING(3) GOLD (3u "~50u ")
Contact pin Material:
MATERIAL: Phos–Bronze C5191 ---0.35mm Thickness
1.PLATING(1) NICKEL
2.PLATING(2) 100%Sn



Shielding Material:
BRASS C2680 PLATING NICKEL
Operating Life:750 Cycles MIN.
Solder Tail Tin Plated Contact Area 1u" Gold Plated
En vironmental
1.Storage Temp:-40 ℃TO +85 ℃.
2.Operating Temp: 0 ℃TO +70 ℃.
3. MATES WITH MODULAR PLUG CONFORMING TO
FCC PART 68,SUBPARTF.

2x USB3.0 Combo Jack RJ45 Gigabit Ethernet LPJU1608AHNL Shield / LEDs G-Y
