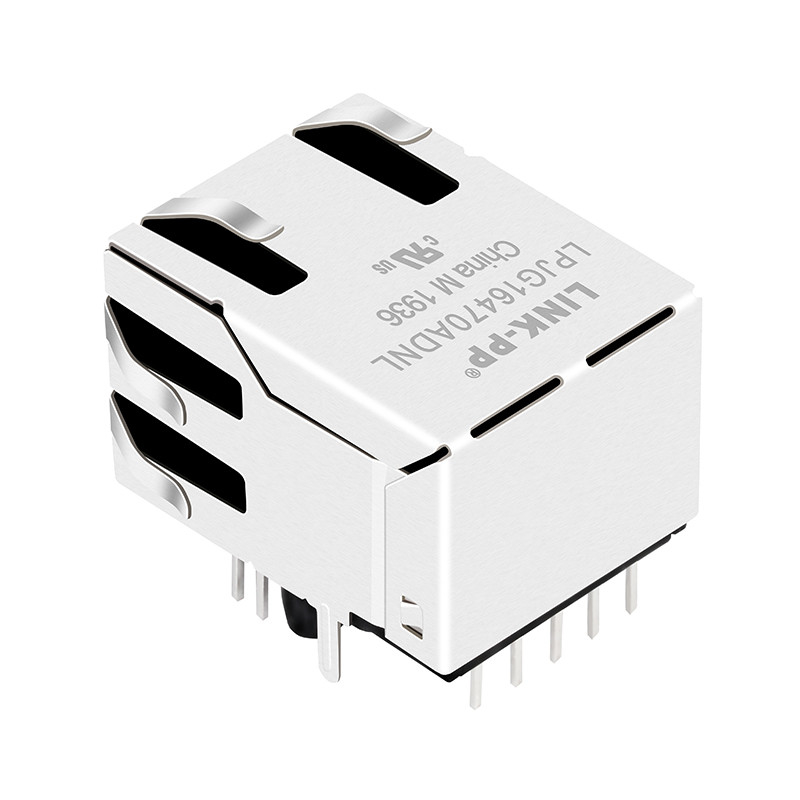

JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity

1. Product Information

• Model: JXD1-0001NL
• Product Description: CONN, RJ45, 1X1, 1GD, 1:1, TU (Single-port RJ45 Gigabit connector with transformer)
• Certification: RoHS Compliant

2. Connector Type and Performance

• Connector Type: RJ45 Jack with Integrated Magnetics
• Number of Ports: 1x1 Port
• Speed ​​Support: 1000 Base-T (Gigabit Ethernet)
• Mounting Orientation: Tab Up, Side Entry
• PoE Level: Non-PoE


3. Physical Characteristics

• Mounting Method: Through Hole
• Connector Material:
• Housing: Black thermoplastic material, UL94 V-0 flame retardant rating
• Shielding: Brass, nickel plated
• Contacts: Phosphor bronze
• Contact Plating: Selective gold plating, 30 micro-inch minimum thickness in contact area
• Dimensions:
• Width: 15.75 mm
• Height: 13.80 mm
• Depth: 21.50 mm
• Pin Spacing: 2.54 mm

4. Electrical Characteristics

• Transformer Turn Ratio: 1:1 (1.0 Turn Ratio @100kHz)
• Turn Ratio Accuracy:
• (P9-P8):(J1-J2) = 1:1±5%
• (P7-P6):(J3-J6) = 1:1±5%
• (P5-P4):(J4-J5) = 1:1±5%
• (P3-P2):(J7-J8) = 1:1±5%
• Primary Inductance: 350μH MIN @100kHz, 0.1V RMS DC BIAS
• DC Resistance: 1.2 OHMS MAX
• Insertion Loss:
• 1-100 MHz: -1.0dB MAX
• 100-125 MHz: -1.2dB MAX
• Return Loss:
• 1-40 MHz: -16dB MIN
• 40-80 MHz: -10dB MIN
• 80-100 MHz: -8dB MIN
• Crosstalk: 1-100MHz: -30dB MIN
• Common mode attenuation: 1-100MHz: -30dB MIN
• Isolation voltage: PHY side to line side: 2250VDC


5. LED indicator

• LED configuration: Bi-color LED
• LED color and specifications:
• Green: 565nm, 20mA, 2.4V(Vmax), 2.2V(Typ)
• Yellow: 590nm, 20mA, 2.5V(Vmax), 2.1V(Typ)
• LED pins:
• Green: P11(+), P12(-)
• Yellow: P13(+), P14(-)

6. Environmental specifications

• Operating temperature range: -40°C to +85°C
• Storage temperature range: -40°C to +85°C
• Soldering temperature: Wave soldering process, peak temperature 260°C maximum, 10 seconds maximum

7. Packing information

• Packing method: Tray
• Standard packaging quantity: 50 pieces/tray
• Quantity per box: 1200 pieces/box

8. Pin definition

• P1-P8: Ethernet signal pins
• P9-P10: Unused
• P11-P12: Green LED
• P13-P14: Yellow LED
• J1-J8: RJ45 interface pins

9. Compliance and certification

• RoHS: Compliant with RoHS Directive
• FCC: Compliant with FCC Rules and Regulations Part 68

Application Note

• Suitable for industrial automation, industrial Internet of Things, and industrial control systems
• Support the IEEE 802.3 standard
• The wave soldering process is recommended
