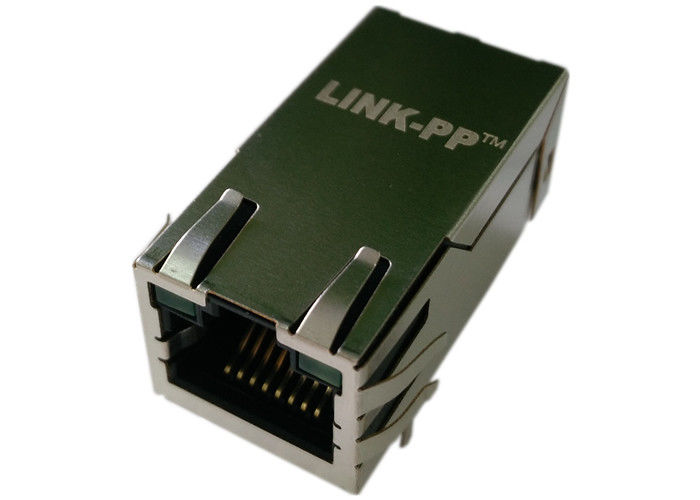

LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity

LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LMJ171881XS3L3T1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 60pcs/tray,960pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

Designe PN#:
LMJ171881XS3L3T1
Samples:
Available Free
Orientation:
90° Angle (Right)
Interface:
1000Mbps
LED:
Flexible
Made In China:
LPJK0071AWNL
Designe PN#:
LMJ171881XS3L3T1
Samples:
Available Free
Orientation:
90° Angle (Right)
Interface:
1000Mbps
LED:
Flexible
Made In China:
LPJK0071AWNL
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity
LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity



LMJ171881XS3L3T1 / LMJ1718811S3L3T1 / LMJ1718812S3L3T1 / LMJ1718813S3L3T1
Trader Specifications
 LMJ171881XS3L3T1
Price Break
Unit Price
Extended Price
1-5
AFREE
-
10-50
BED
-
100-500
C-124
-
1,000-2,500
Supportive
 Competitive
5,000
Dynamic
Dynamic
10,000
Dynamic
Dynamic
50,000
 Negotiable
Negotiable
100,000
 Negotiable
Negotiable
500,000
 Negotiable
Negotiable
Made in China Cross
LPJK0071AWNL
Manufacturer
LINK-PP China
Description
 Rj45 Gig-E Right Angle PCB Jack
Documents Available
PDF/3D/Step/IGS/Price/Cross
Quantity Available
200,000 PCS or 4 weeks



RJMG201031110NR ELECTRICAL SPECFICATIONS: @25℃
1.Turn Ratio(±2%):
  1CT:1CT
2.Inductance OCL:
  350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
  -1.0dB MAX @ 1.0-100MHz
4.Return Loss:
  -18dB MIN @ 1-30MHz
  -15dB MIN @ 30-60MHz
  -12dB MIN @ 60-80MHz
  -10dB MIN @ 80-100MHz
5.Cross talk:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
6.Common Mode Rejection:
  -40dB MIN @ 30MHz
  -35dB MIN @ 60MHz
  -30dB MIN @ 100MHz
7.Hipot: 1500Vrms

LMJ171881XS3L3T1 | LPJK0071AWNL Magnetic RJ45 1000Base-T Connectivity 0

Tags:

Magjack POE,

RJ45 1Gbps,

rj45 with magnetics
