Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7498210003
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 110pcs/reel,770pcs/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2800K-PCS/Month
Specifications: |
7498210003 |
Cross PN: |
LPJ19961-8CNL |
Ethernet: |
10/100Mbps POE |
Standard: |
IEEE802.3af |
Mounting: |
SMD |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
7498210003 |
Cross PN: |
LPJ19961-8CNL |
Ethernet: |
10/100Mbps POE |
Standard: |
IEEE802.3af |
Mounting: |
SMD |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

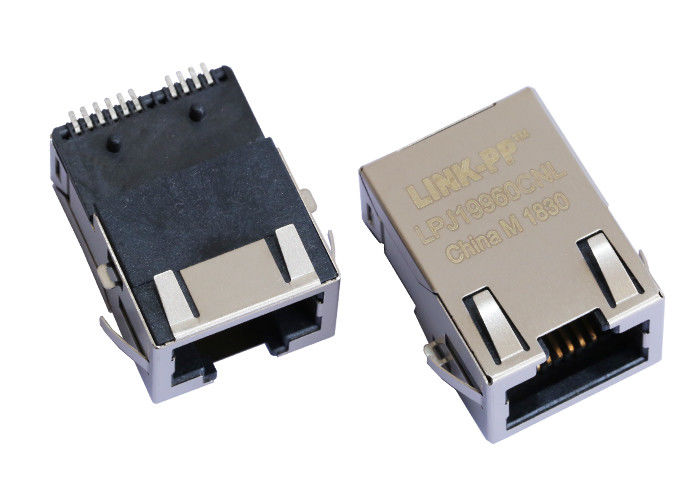

LPJ19961-8CNL LINK-PP Ultra-Low-Profile Connector
Compatible to Rj45 POE modular jack 7498210003
Compliant with IEEE 802.3af for 10/100Base-TX-Applications
Low Profile Rj45 10/100/1000 With Magnetics
Auto MDIX capable
9.4mm height above PCB
Surface Mounting Low Profile for Power Over Ethernet Connectivity
Applications:
| SMT RJ45 8p8c Jack with 10/100 Base-T Integrated Magnetics & PoE without LED,Tab UP,RoHS | |
| LINK-PP Part Number | LPJ19960CNL |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores per Port | 4 |
| Diodes | NO DIODES |
| LED Option | Without LEDS |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.457 |
| Package Height (mm) | 11.60 |
| Package Length (Inches) | 0.850 |
| Package Length (mm) | 21.60 |
| Package Width (Inches) | 0.614 |
| Package Width (mm) | 15.60 |
| Pin Type | SURFACE MOUNT |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 10/100 Base-T |
| Temperature | - 40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
