Model Number: TG111-E212NWRL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
TG111-E212NWRL |
Updated PN: |
LP85002ANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000Mbps Power |
Isolation Voltage: |
1500Vrms |
OCL Inductance: |
0.35 MH |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
TG111-E212NWRL |
Updated PN: |
LP85002ANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000Mbps Power |
Isolation Voltage: |
1500Vrms |
OCL Inductance: |
0.35 MH |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
TheLP85002ANL is Compatible to TG111-E212NWRL

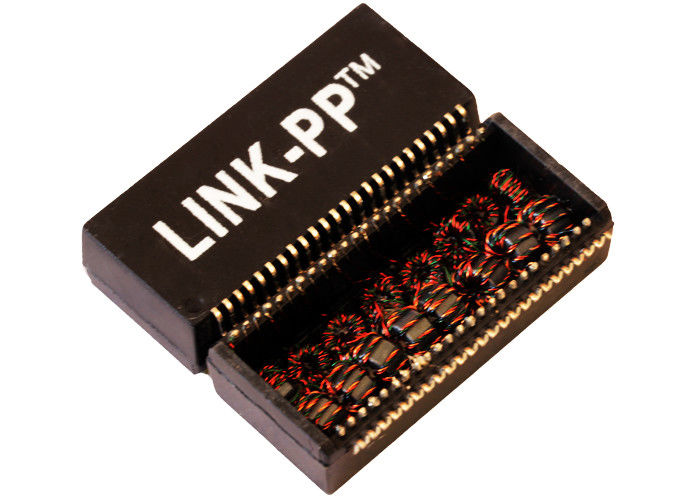

50 Pin 0.040 Pitch SMT Isolation Module Signal Transformer.
Designed for Dual-Port Gigabit, IEEE802.3ab or Four-Port Fast Ethernet, IEEE802.3u applications.
Product Specifications:
Insertion loss(1-100 MHz) : -1.1 db max
CMR(1-100MHz) : -40dB typ
Crosstalk (1-100MHz) : -40dB typ
Isolation Voltage : 1,500 Vrms
SPECIFICATIONS
| Product Category: | Transformers Audio & Signal |
| Manufacturer: | LINK-PP |
| RoHS: | Yes |
| Termination Style: | SMD/SMT |
| Frequency Range: | 1 MHz to 100 MHz |
| Inductance: | 350 uH |
| Isolation Voltage: | 1.5 kV |
| Operating Temperature Range: | - 40 C to + 85 C |
| Series: | LP85XXX |
| Packaging: | Tube |
| Package / Case: | SMD-50 |
| Length: | 27.94 mm |
| Width: | 7.62 mm |
| Height: | 8.64 mm |
| Brand: | LINK-PP |
| Product Type: | Ethernet Isolation Module |
| Qualification: | AEC-Q200 |
| Factory Pack Quantity: | 18 |
| Mfr Package Description | ROHS COMPLIANT |
| EU RoHS Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | ETHERNET |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | TG111-E212NWRL |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 8 |
| Operating Temperature-Min | -40.0 Cel |
