Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HY602403
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |

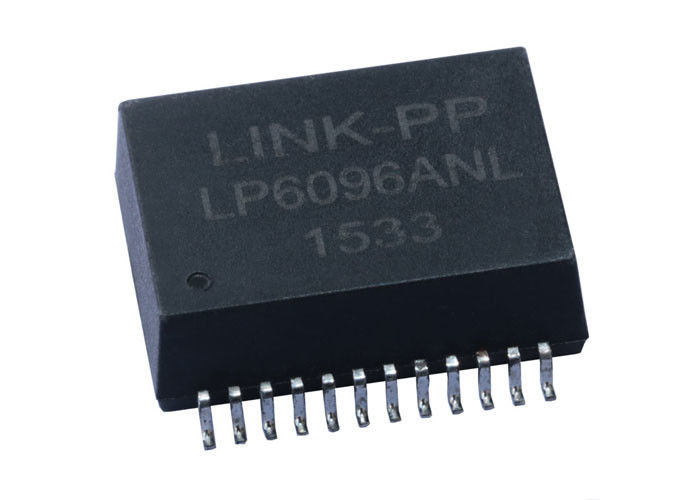

HY602403 |
Update PN: |
LP6096ANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000Mbps Power |
Isolation Voltage: |
1500Vrms |
Capability: |
800mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HY602403 |
Update PN: |
LP6096ANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000Mbps Power |
Isolation Voltage: |
1500Vrms |
Capability: |
800mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |

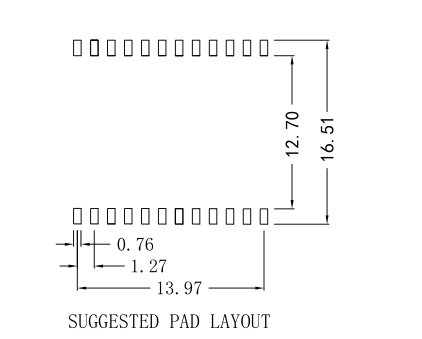

Electrical Specification @25℃
1.Insertion Loss(dB Max):
0.1MHz: -1.2
1-125MHz: -2.0
2.Return Loss(dB Min):
1-40MHz: -16
40-100MHz: -10
3.Crosstalk(dB Min):
30MHz: -43
60MHz: -37
100MHz: -33
4.CMRR(dB Min):
30MHz: -30
200MHz: -15
5.DCR Balance: 1 Ω ±0.05Ω
6.OCL:
(1) 350uH Min @20mA DC Bias
(2) 120uH Min @30mA DC Bias
7.Temperature rise of 35℃ when supplying
800mA DC continuous over 4 pairs
8.Hipot:1500Vrms
9.Operating Temperature: -40℃～+85℃.
NOTES:
1.Gigabit Transformer Modules With Power Over
Ethernet Option
2.Exceeds IEEE 802.3at requirements with up
to 800mA DC supply current over 2 or 4 pairs
3.For RoHS part add suffix NL
4.RoHS"NLE" peak solder rating 250℃.
