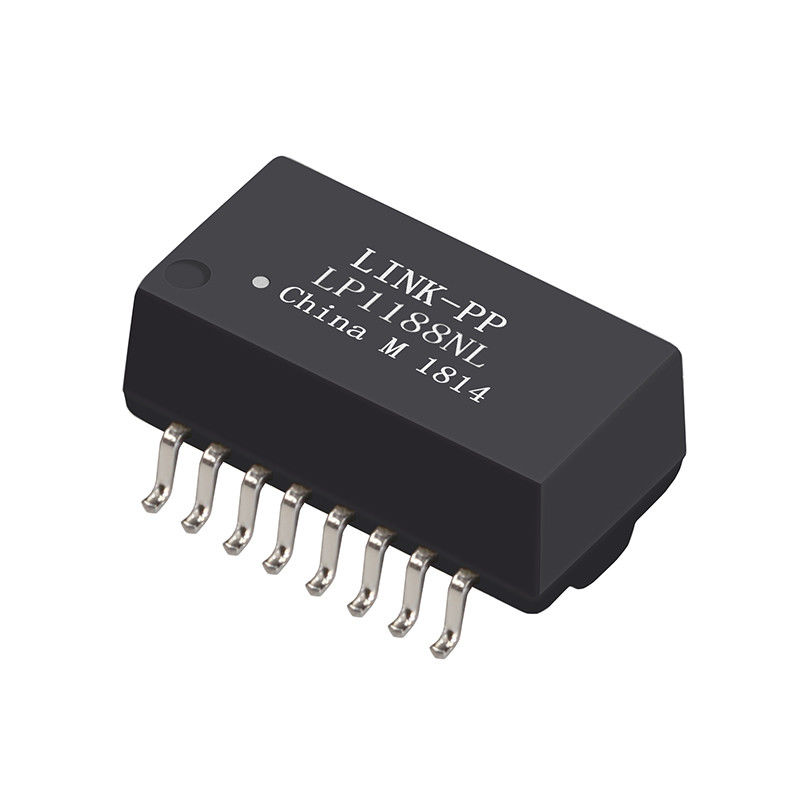

7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics

China 7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics supplier
7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics supplier 7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics supplier

Large Image :  7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 7490100111A

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 7490100111A Equivalent: LP1188NL
Turn Ratio: 1:1 Mounting: SMT
Ethernet: 1x10/100Base-Tx Dielectric: 1500Vrms
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics
  • Ethernet TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
  • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
  • Surface Mountable(Miniature size)
  • Coil Structure: Toroidal
  • 10/100 Base-T Transformer Modules
  • LP1188NL Compatible of 7490100111A Equivalent Specifications
  • Equivalent to 7490100111A
  • operating temperature: -40°C - + 105°C
  • Hipot test: 1500Vrms 1min.
  • Compliant with IEEE 802.3u for 10/100Base-TX-Applications
  • Auto MDIX capable

Electrical Specifications @25
1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC
2.Turns Ratio(±3%):
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB MIN @ 100Ω):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB MIN):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB MIN):
30MHz:-42 60MHz:-37
100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: -40℃~+85℃.



SPECIFICATIONS:



Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type LINK-PP LP1188NL made In China
Application GENERAL PURPOSE
Isolation Voltage 1500 Vrms
Manufacturer Series 7490100111A Cross
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1
Height 6.35 mm
Length 12.70 mm
Width 9.40 mm
Additional Feature HEIGHT DIM INCLUDE TERMINALS ALSO



7490100111A | LP1188NL 10/100 Transformer 16pins Fast Ethernet Magnetics

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: summer

Tel: +8618026686530

Send your inquiry directly to us (0 / 3000)
