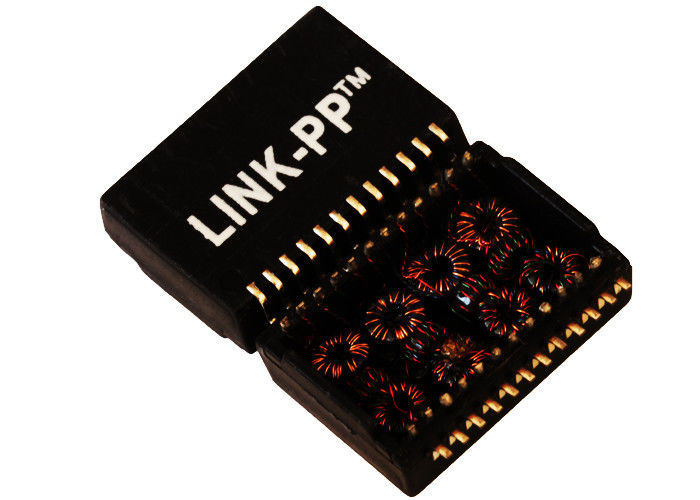

Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 749023016
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
749023016 |
Cross PN: |
LPXXXXANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000 Mbps Power Ethernet |
Isolation Voltage: |
1500Vrms |
Capability: |
350mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
749023016 |
Cross PN: |
LPXXXXANL |
Turns Ratio: |
1CT:1CT |
Mounting: |
Surface Mount |
Ethernet: |
1x10/100/1000 Mbps Power Ethernet |
Isolation Voltage: |
1500Vrms |
Capability: |
350mA DC |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
REACH Compliant |
Yes |
Status |
Active |
Transformer Type |
DATACOM TRANSFORMER |
Application |
SIGNAL |
Approvals |
UL |
Insertion Loss |
1.0 dB |
Isolation Voltage |
1500.0 V |
Manufacturer Series |
749023010A Equivalent Cross Compatible Part |
Mounting Feature |
SURFACE MOUNT |
Operating Temperature-Min |
0.0 Cel |
Operating Temperature-Max |
70.0 Cel |
Packing Method |
TAPE & REEL |
Physical Dimension |
17.5mm x 14.2mm x 6.5mm |
Primary Inductance |
350.0 µH |
Sub Category |
Other Transformers |
Turns Ratio (Np:Ns) |
1:1 |
Height |
6.5 mm |
Length |
17.5 mm |
Width |
14.2 mm |
749023016 Datasheet / Cross / Equivalent / Compatible PN.
