H2019NL / LP2019ANL POE Transformer 10/100BASE-TX VoIP Magnetics Modules

H2019NL / LP2019ANL POE Transformer 10/100BASE-TX VoIP Magnetics Modules
H2019NL / LP2019ANL POE Transformer 10/100BASE-TX VoIP Magnetics Modules H2019NL / LP2019ANL POE Transformer 10/100BASE-TX VoIP Magnetics Modules

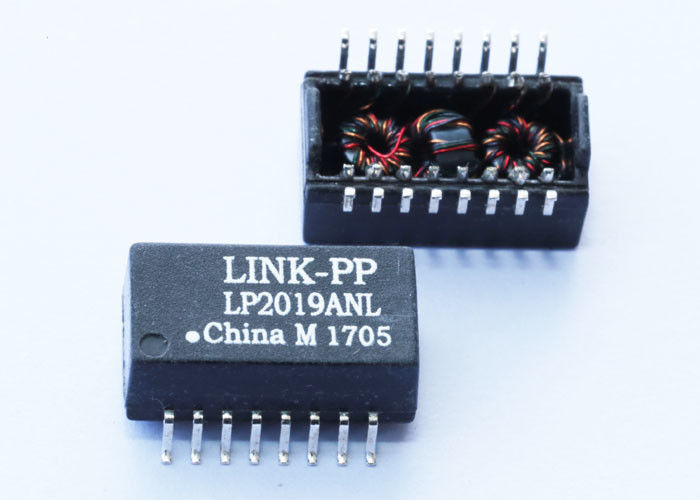

Large Image :  H2019NL / LP2019ANL POE Transformer 10/100BASE-TX VoIP Magnetics Modules

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H2019NL
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
Specification: H2019NL Cross: LP2019ANL
Application: Power Over Ethernet Magnetic Pins: 6 Pins
Port: 1x 10/100Base-TX Hipot: 1500V
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

power over ethernet transformer

,

ethernet transformer

Transformers Audio & Signal 100Base-TX SMD PoE 350uH .65Ohms 1-Port H2019NL



Mfr Cross In China LP2019ANL /  LP2019NL
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX; ETHERNET
Approvals UL
Insertion Loss 1.2 dB
Isolation Voltage 1500.0 V
Manufacturer Series H2019NL
Mounting Feature SURFACE MOUNT
Number of Functions 1
Number of Primary Winding 2.0
Number of Secondary Winding 22.0
Operating Frequency-Min 1000.0 kHz
Operating Frequency-Max 100000.0 kHz
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TUBE
Physical Dimension L12.70XB7.11XH5.97 (mm)
Primary Inductance 350.0 µH
Sub Category Other Transformers
Terminal Finish Matte Tin (Sn)
Turns Ratio (Np:Ns) 1:1; 1:1
Height 5.97 mm
Length 12.7 mm
Width 7.11 mm
Additional Feature HEIGHT DIM INCLUDES TERMINALS ALSO



Transformers Audio & Signal 100Base-TX SMD PoE 350uH .65Ohms 1-Port H2019NL
