Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE4718AGNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 20pcs/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 100K-PCS/Month
Connector Type: |
RJ45 Jack |
Part No: |
LPJE4718AGNL |
Ethernet: |
Cat5,5E |
Standard: |
IEEE802.3 |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Connector Type: |
RJ45 Jack |
Part No: |
LPJE4718AGNL |
Ethernet: |
Cat5,5E |
Standard: |
IEEE802.3 |
Samples: |
Available |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |

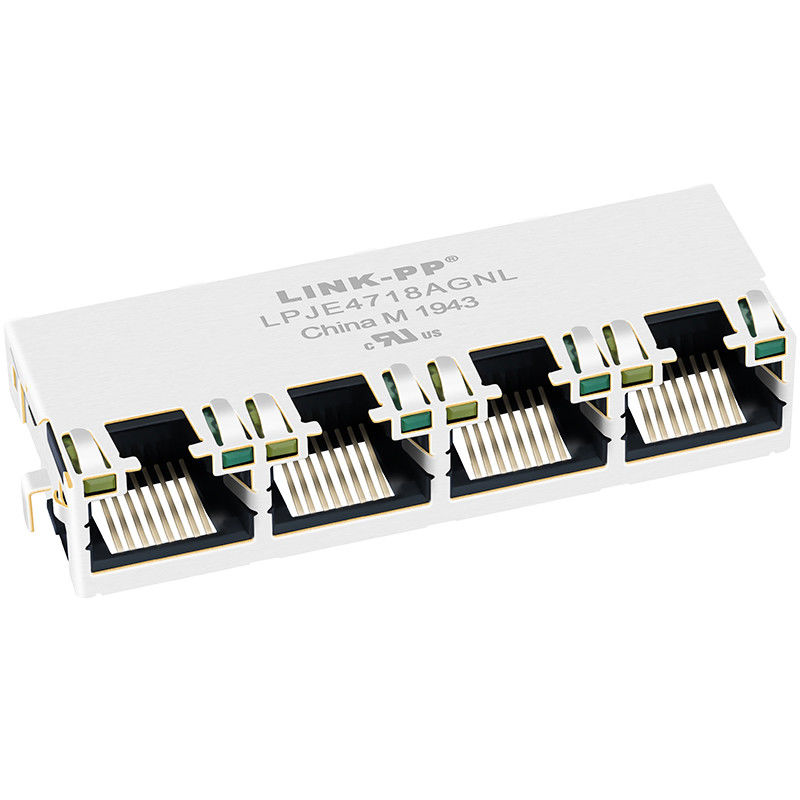

1x4 Port Rj45 Low Profile Mid PCB Mounting Small Size
Quad ports Cat5e 8Position Female Socket rj45
NOTES:
Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 50 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PA46+ 30%GF Color Black
2.Contact Material : Diameter 0.30mm Phosphor Bronze
3.Shield : 0.30 mm Thickness Brass
4.Operation Life : 750 Cycless Min
5. Contact Plating: Gold 30 Micro-Inches Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635
LPJE4718AGNL Low-Profile RJ45 Jack 1x4 Port Package:
Connector Network Applications:
Networking : Router , Server , Switches , Network Firewall , SMPS.
Consumer : Digital Camera , Video Recorder , Media Player , Game Controller , TV.
Security : Alarm , Smart Camera , Monitoring System , Intercom , Entrance Guard System.
Telecom : Set-top Box , Smart Home , Smart Meters , Satellite , New Energy , Solar Inverter.
Medical : Surgical Equipment , Patient Care , The Handheld Device , Operation Generator , Home Dialysis , Machine.
Industrial l/O : Industrial PC , Embedded Main Board , Ethernet Control , Automation , Fieldbus System , 1/0 Controller.
