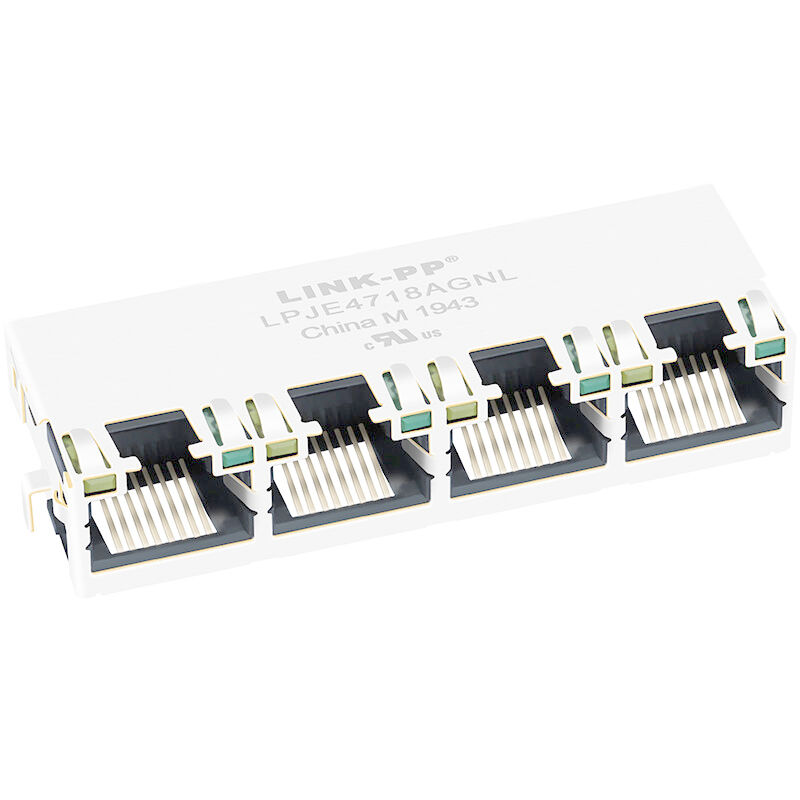

Low Profile RJ45 Jack 1x4 Port With LED Magnetics Connector LPJE4718AGNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJE4718AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 20pcs/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 100K-PCS/Month

Get Best Price
Highlight:

Low Profile RJ45 Jack 1x4

,

LPJE4718AGNL Low Profile Ethernet Jack

,

LPJE4718AGNL Magnetic Connectors

Connector Type:
RJ45 Jack
Part No:
LPJE4718AGNL
Ethernet:
Cat5,5E
Standard:
IEEE802.3
Samples:
Available
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Connector Type:
RJ45 Jack
Part No:
LPJE4718AGNL
Ethernet:
Cat5,5E
Standard:
IEEE802.3
Samples:
Available
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Low Profile RJ45 Jack 1x4 Port With LED Magnetics Connector LPJE4718AGNL
Low-Profile RJ45 Jack 1x4 Port With LED Magnetics Connector LPJE4718AGNL



1x4 Port Rj45 Low Profile Mid PCB Mounting Small Size

Quad ports Cat5e 8Position Female Socket rj45



NOTES:


Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 50 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PA46+ 30%GF Color Black
2.Contact Material : Diameter 0.30mm Phosphor Bronze
3.Shield : 0.30 mm Thickness Brass
4.Operation Life : 750 Cycless Min

5. Contact Plating: Gold 30 Micro-Inches Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635





Low Profile RJ45 Jack 1x4 Port With LED Magnetics Connector LPJE4718AGNL 0

Low Profile RJ45 Jack 1x4 Port With LED Magnetics Connector LPJE4718AGNL 1







LPJE4718AGNL Low-Profile RJ45 Jack 1x4 Port Package:



A70-112-331N126 Tab Down Ethernet Magnetic RJ45 Connector LPJG0926HENL With POE + 2





Connector Network Applications:

Networking : Router , Server , Switches , Network Firewall , SMPS.

Consumer : Digital Camera , Video Recorder , Media Player , Game Controller , TV.

Security : Alarm , Smart Camera , Monitoring System , Intercom , Entrance Guard System.

Telecom : Set-top Box , Smart Home , Smart Meters , Satellite , New Energy , Solar Inverter.

Medical : Surgical Equipment , Patient Care , The Handheld Device , Operation Generator , Home Dialysis , Machine.

Industrial l/O : Industrial PC , Embedded Main Board , Ethernet Control , Automation , Fieldbus System , 1/0 Controller.
