Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

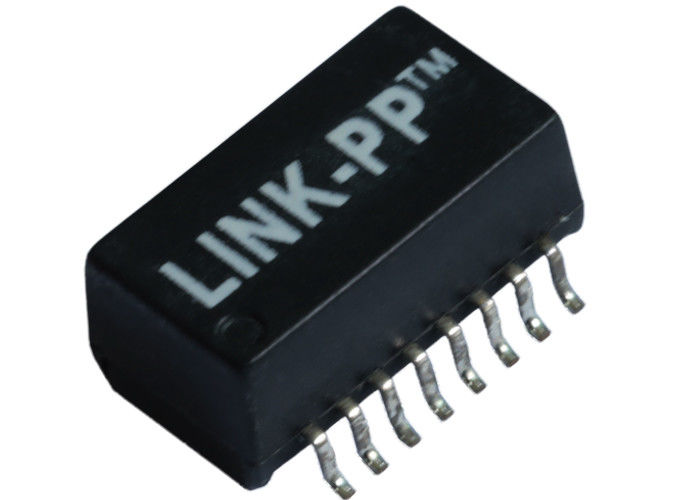

Model Number: 100B-1001FNL (T)
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
100B-1001FNL (T) |
P/N: |
LPXXXXANL |
Measure: |
L14.81XB11.94XH4.7 (mm) |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
100B-1001FNL (T) |
P/N: |
LPXXXXANL |
Measure: |
L14.81XB11.94XH4.7 (mm) |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-Tx |
Samples: |
Free |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Mfr Package Description | ROHS COMPLIANT |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 10/100 BASE-TX |
| JESD-609 Code | e3 |
| Manufacturer Series | 100B-1001X |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 1 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Packing Method | TAPE & REEL; TRAY |
| Physical Dimension | L14.81XB11.94XH4.7 (mm) |
| Primary Inductance | 350.0 µH |
| Terminal Finish | TIN |
| Turns Ratio (Np:Ns) | 1:1; 1:1 |
| Height | 4.7 mm |
| Length | 14.81 mm |
| Width | 11.94 mm |
| Additional Feature | HEIGHT DIM INCLUDE TERMINALS ALSO |
