Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1259NL(T)
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
H1259NL(T) |
P/N: |
LP1259ANL |
Speed: |
4x 10/100 BASE-T |
Ports: |
Quad Port |
Application: |
10/100Base-T PoE |
PIN Number: |
40 |
Temperature: |
-40 TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
H1259NL(T) |
P/N: |
LP1259ANL |
Speed: |
4x 10/100 BASE-T |
Ports: |
Quad Port |
Application: |
10/100Base-T PoE |
PIN Number: |
40 |
Temperature: |
-40 TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

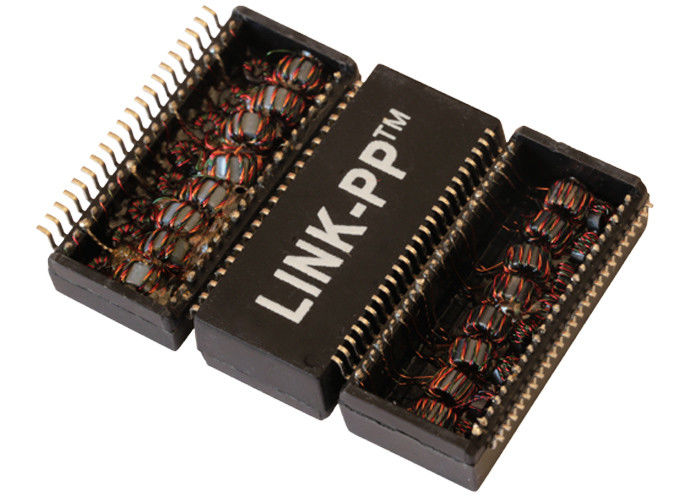

| Mfr Specifications | HX1259NL / HX1259NLT Equivalent Cross Compatible |
| Status | Active LP1259ANL |
| Transformer Type | DATACOM TRANSFORMER |
| Application | 10/100 BASE-TX; ETHERNET |
| Isolation Voltage | 1500.0 V |
| Manufacturer Series | H1259 Specifications |
| Mounting Feature | SURFACE MOUNT |
| Number of Functions | 4 x 10/100Mbps |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Packing Method | TUBE or reel |
| Physical Dimension | 28.58mm X 12.19mm X 5.97mm |
| Primary Inductance | 350.0 µH |
| Turns Ratio (Np:Ns) | 1:1; 1:1; 1:1; 1:1 |
| Height | 5.97 mm |
| Length | 28.58 mm |
| Width | 12.19 mm |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINALS ALSO |
