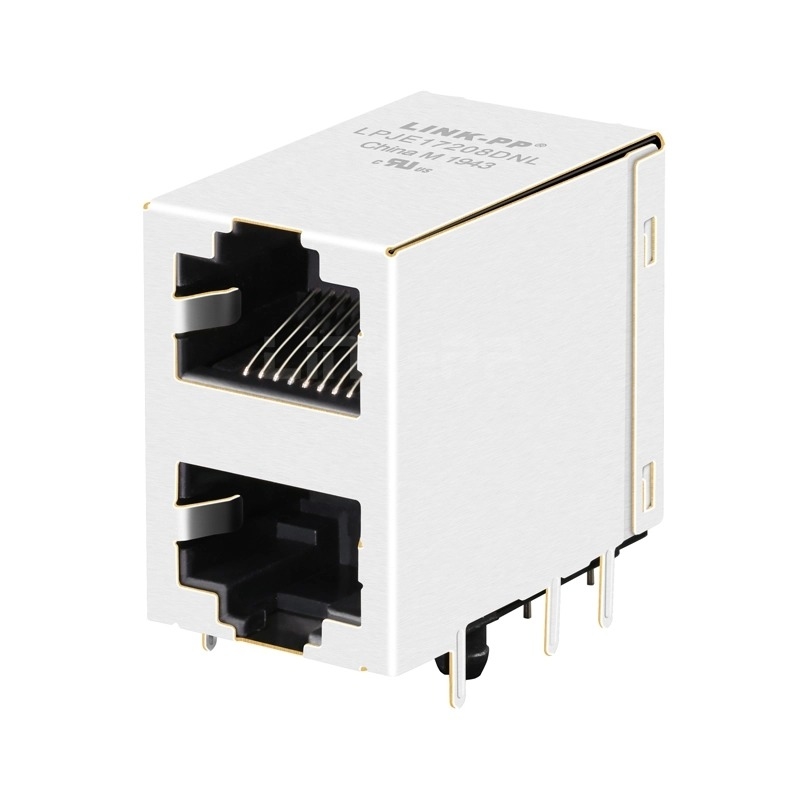

5569380-1 RJ45 2X1 LPJE17208DNL Stacked 8P8C Modular Jacks

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 5569380-1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 45pcs/tray

Delivery Time: In Stock Ship Within 3 Days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

RJ45 2X1 LPJE17208DNL

,

Cat 5 8P8C Modular Jacks

,

5569380-1

P/N:
5569380-1
LINK-PP Cross P/N:
LPJE17208DNL
Performance Category:
Cat 5
Application:
Multiple Ports RJ45 Jacks
Termination:
Solder
LEDs:
Without
PCB Mount Orientation :
Right Angle
Operating Temperature Range:
-40 – 85 °C [ -40 – 185 °F ]
P/N:
5569380-1
LINK-PP Cross P/N:
LPJE17208DNL
Performance Category:
Cat 5
Application:
Multiple Ports RJ45 Jacks
Termination:
Solder
LEDs:
Without
PCB Mount Orientation :
Right Angle
Operating Temperature Range:
-40 – 85 °C [ -40 – 185 °F ]
5569380-1 RJ45 2X1 LPJE17208DNL Stacked 8P8C Modular Jacks



5569380-1 LPJE17208DNL 2x1 RJ45 Modular Connectors Overview:

Specifications:

Product Category: 2 x 1 Multiple Ports Modular Connectors
Manufacturer: LINK-PP LPJE17208DNL Compatible with TE 5569380-1
RoHS: YES
USOC Codes: RJ45
Number of Positions: 8 Position
Number of Ports: 2 Port
Performance Category: Cat 5
TPCB Mount Orientation Right Angle
Shielding: Shielded
Housing Color: Black
Packaging: Tray
Contact Material: Phosphor Bronze
Contact Plating: Gold
Flammability Rating: UL 94 V-0
Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT Polyester
Mounting Angle: Through Hole - Solder

t

5569380-1 PCB Layout:​-:ompatile 100%

5569380-1 RJ45 2X1 LPJE17208DNL Stacked 8P8C Modular Jacks 0



Frequently Asked Questions (FAQs) – 5569380-1 RJ45 Connector

1. What type of connector is the 5569380-1?


The 5569380-1 is a shielded RJ45 modular jack connector with a 2 x 1 stacked port configuration. It’s designed for PCB mount applications and supports Cat 5 Ethernet performance.






2. Is this connector suitable for high-speed Ethernet applications?


Yes. It meets Category 5 (Cat 5) performance standards, supporting 10/100 Mbps Ethernet applications.






3. How many ports does the connector have?


This connector features a dual-port (2 x 1 stacked) configuration—two RJ45 jacks vertically aligned.






4. Is the 5569380-1 shielded?


Yes. The connector includes metal shielding (Tin over Copper on a Copper Alloy base) for EMI/RFI protection, making it ideal for electrically noisy environments.






5. What is the recommended PCB termination method?


This connector is designed for Through Hole - Solder termination, providing strong mechanical retention.






6. What is the current rating per contact?


Each contact is rated for up to 1.5 A, with some positions limited to 0.2 A, depending on the design use.






7. What material is used for the contacts and plating?

  • Contact base material: Phosphor Bronze
  • Plating: Gold (Au) over Nickel (Ni), with 50 µin (1.27 µm) gold thickness on the mating area for reliable connections.






8. What is the recommended PCB thickness?


The connector is optimized for 1.57 mm (0.062 in) thick PCBs.






9. What is the operating temperature range?


It can operate in extreme conditions, from -40°C to +85°C (-40°F to +185°F).






10. Does it include built-in LEDs or indicators?


The 5569380-1 RJ45 Modular Jack does not feature LED indicators.






11. What industry safety standards does it meet?


It complies with UL 94V-0 flammability rating.








12. What is the centerline (pitch) between contacts?


The connector features a 1.02 mm (0.04 in) centerline pitch.
