Model Number: G24115CE
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
G24115CE / G2484CE / G24102CE |
PN: |
LP6096ANL |
Number Of Ports: |
SINGLE |
Application-LAN: |
ETHERNET (PoE) |
Package: |
SMD |
Temperature: |
-40 TO+85℃ |
Ethernet-1: |
1000BASE-Tx1 |
Ethernet-2: |
2x 10/100Base-T |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
G24115CE / G2484CE / G24102CE |
PN: |
LP6096ANL |
Number Of Ports: |
SINGLE |
Application-LAN: |
ETHERNET (PoE) |
Package: |
SMD |
Temperature: |
-40 TO+85℃ |
Ethernet-1: |
1000BASE-Tx1 |
Ethernet-2: |
2x 10/100Base-T |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
| Parameter | Specification |
|---|---|
| Part Number | LP6096ANL (Cross G24115CE / G2484CE / G24102CE) |
| Manufacturer | LINK-PP |

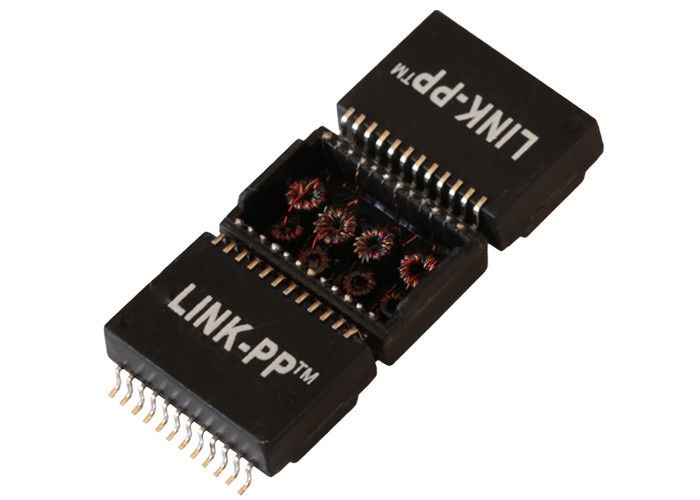

| Type | Single-Port Gigabit Ethernet Transformer |
| Mounting Type | Surface Mount Device (SMD), 24 Pins |
| Package Type | Tape & Reel |
| Standards Compliance | IEEE 802.3at (PoE+), UL, RoHS, REACH, ISO 9001, ISO 14001 |
| Operating Temperature Range | -40°C to +85°C |
| Application | Ethernet (PoE+) |
| Construction | Open Frame |
| Auto-MDX Support | Yes |
| Core Material | Ferrite |
| Number of Ports | 1 |
| Turns Ratio (Transmitter & Receiver) | 1CT:1CT |
| Cores per Port | 12 |
| Package Dimensions | Length: 17.53 mm; Width: 16.10 mm; Height: 5.84 mm |
| Insertion Loss (1 MHz to 100 MHz) | ≥ -1.2 dB |
| Return Loss (1 MHz to 40 MHz) | ≥ -16 dB |
| Maximum Reflow Soldering Temperature | 250°C for 5 seconds |
| Turns Ratio (Primary: Secondary) | 1CT:1CT |
| OCL (uH) |
350 µH Min @ 8 mA DC Bias; 220 µH Max @ 18 mA DC Bias |
| Insertion Loss (dB Max) |
0.1 MHz: -1.2; 1–125 MHz: -2.0 |
| Return Loss (dB Min) |
1–40 MHz: -16; 40–100 MHz: -10 |
| Crosstalk (dB Min) |
30 MHz: -43; 60 MHz: -37; 100 MHz: -33 |
| CMRR (dB Min) |
30 MHz: -30; 200 MHz: -15 |
| DCR Balance | 1 Ω ± 0.05 Ω |
| Balance DC Line Current | 720mA Max, @ 57 VDC Continuous |
| Hipot | 1500 Vrms |
