Home > products > Low Profile RJ45 Jack > 12.2mm Low Profile,Rj45 1x1 8P8C THT Shield No LEDs LPJEF180-0CNL

12.2mm Low Profile,Rj45 1x1 8P8C THT Shield No LEDs LPJEF180-0CNL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJEF180-0CNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.08-$1.79

Packaging Details: 20pcs/Tray or Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 100K-PCS/Month

Get Best Price
Highlight:

12.2mm Low Profile RJ45 Jack

,

8P8C rj45 low profile connector

,

8P8C RJ45 Moduar Jack

Specifications:
LPJEF180-XCNL
Part No:
LPJEF180-0CNL
Ethernet:
Cat5,5E
Standard:
IEEE802.3
Mounting:
THT
Samples:
Available
Files:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LPJEF180-XCNL
Part No:
LPJEF180-0CNL
Ethernet:
Cat5,5E
Standard:
IEEE802.3
Mounting:
THT
Samples:
Available
Files:
PDF/3D/ISG/Stp/Step/Datasheet

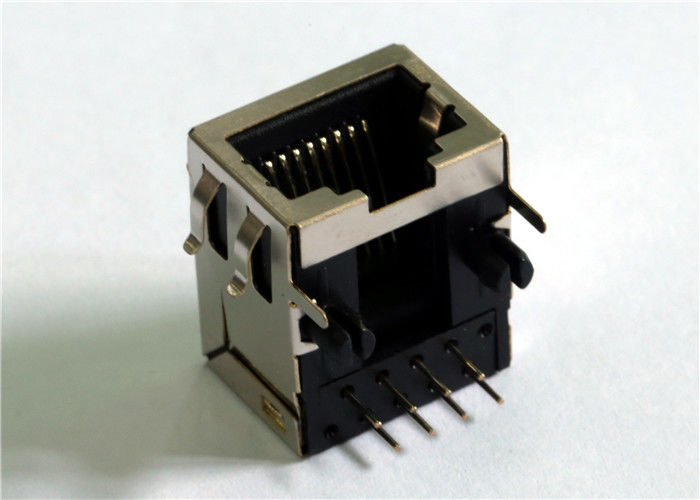

12.2mm Low Profile,Rj45 1x1 8P8C THT Shield No LEDs LPJEF180-0CNL
12.2mm Low Profile,Rj45 1x1 8P8C THT Shield No LEDs LPJEF180-0CNL



1x1 Port Rj45 Low Profile Thru-Hole Tab-Down

THT Rj45 Low Profile, Low Height Connector , 8P8C

Single ports Cat5 8Position Female Socket rj45



NOTES:
Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 20 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN
Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating 3u Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃ 2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635



Other Available List:



LPJEF180DNL

LPJEF180XCNL

LPJEF180-0CNL

LPJEF1800DNL

LPJEF1802DNL

LPJEF1800CNL

LPJEF1801CNL

LPJEF1802CNL

LPJEF1803CNL

LPJEF184CNL

LPJEF1805CNL

LPJEF1801DNL

LPJEF1802DNL

LPJEF1803DNL

LPJEF1804DNL

LPJEF1805DNL
