Coon 2x2 Rj45 Socket Female Jack R/A Shield W/LED LPJE107-0AGNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJE107-0AGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

modular jacks rj45

,

rj45 usb connector combo

Specifications:
LPJE107XAGNL
P.N:
LPJE107-0AGNL
Mechanical:
32.26x28.15x25.40mm
Apllication:
Cat3,Cat5,Cat5e, AutoMDIX 2x4 Config
Mounting:
THT,R/A
Samples:
Available
Specifications:
LPJE107XAGNL
P.N:
LPJE107-0AGNL
Mechanical:
32.26x28.15x25.40mm
Apllication:
Cat3,Cat5,Cat5e, AutoMDIX 2x4 Config
Mounting:
THT,R/A
Samples:
Available

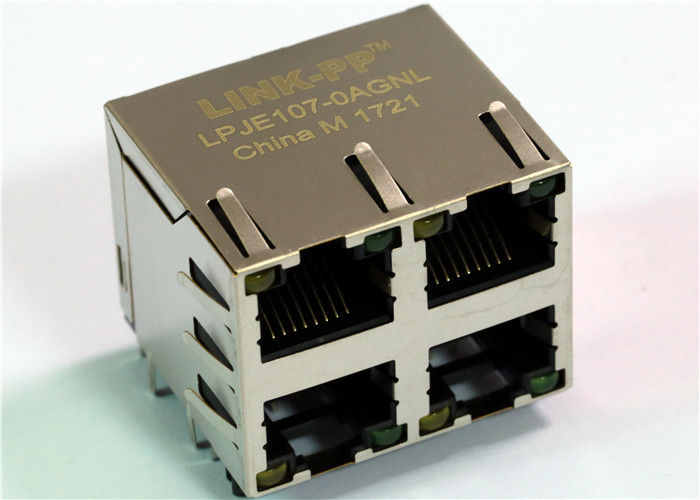

Coon 2x2 Rj45 Socket Female Jack R/A Shield W/LED LPJE107-0AGNL
Coon 2x2 Rj45 Socket Female Jack R/A Shield W/LED LPJE107-0AGNL



2x2 Port Female Connectivity to Ethernet, Cat5,5e



Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 50 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN

Coon 2x2 Rj45 Socket Female Jack R/A Shield W/LED LPJE107-0AGNL 0

Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635



Other lists Available



LPJE107-0AGNL
LPJE107-3AGNL
LPJE107-XAGNL
LPJE1075CNL
LPJE107XCNL
LPJE107XDNL
LPJE107-0CNL
LPJE107X-2CNL
LPJE107XAHNL
LPJE107XAWNL
LPJE107XBWNL
LPJE1073AHNL
LPJE1073B4NL
LPJE1073BGNL
LPJE107XAWNL



Do you also interested in External Magnetic Transformer ?



Single port ? Dual Ports ? Quad Ports ?

10/100Base-T ? 10/100/1000Base-T ?

With or Without POE POE+ ?
