Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 48F-01GYD2NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
48F-01GYD2NL |
Cross Part No: |
LPJG0801GENL |
Product Type: |

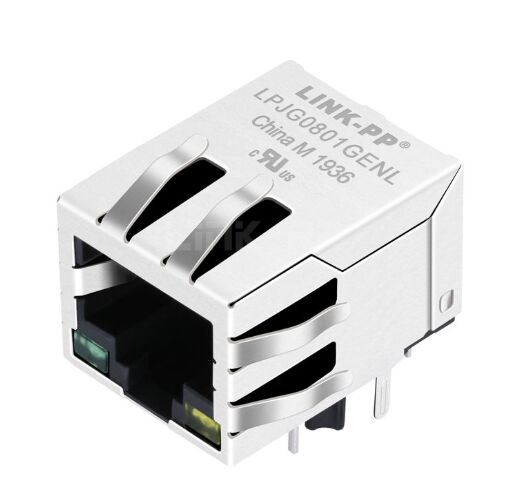

RJ45 MagJack With Integrated Magnetics |
Ethernet Standard: |
1000BASE-T |
Port Configuration: |
Single Port |
Mounting Type: |
Through Hole |
Plating: |
6u” Gold Plating |
Compliance: |
RoHS |
Operating Temperature: |
-20°C To +85°C |
Mechanical Durability: |
750 Mating Cycles Minimum |
Shielded Metal Housing: |
Yes |
LED Indicators: |
Left Green And Right Yellow |
Part Number: |
48F-01GYD2NL |
Cross Part No: |
LPJG0801GENL |
Product Type: |
RJ45 MagJack With Integrated Magnetics |
Ethernet Standard: |
1000BASE-T |
Port Configuration: |
Single Port |
Mounting Type: |
Through Hole |
Plating: |
6u” Gold Plating |
Compliance: |
RoHS |
Operating Temperature: |
-20°C To +85°C |
Mechanical Durability: |
750 Mating Cycles Minimum |
Shielded Metal Housing: |
Yes |
LED Indicators: |
Left Green And Right Yellow |
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3ab specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
