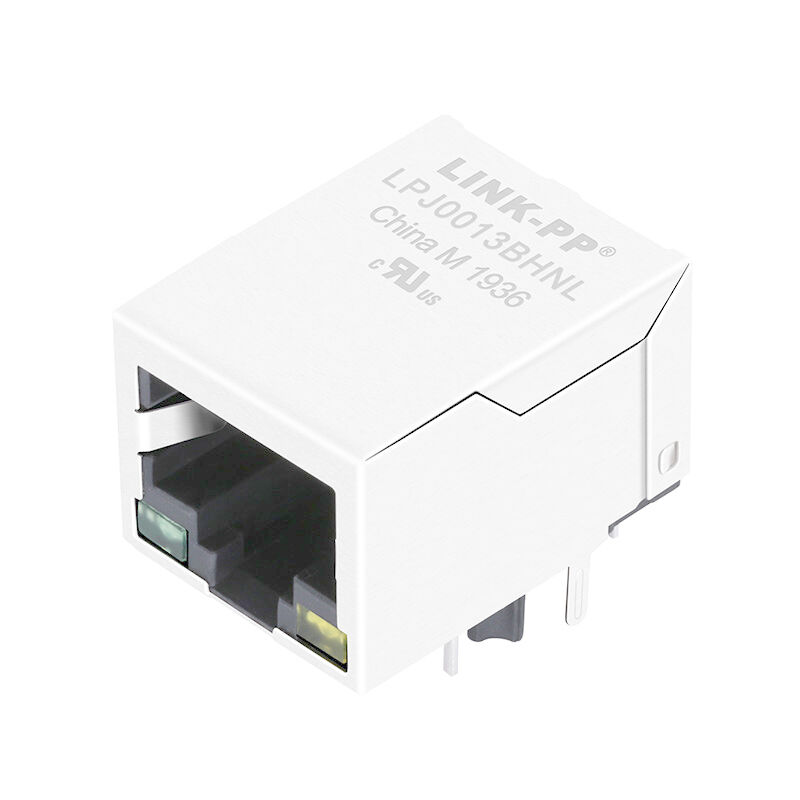

10/100Base-Tx UTP RJ45 Jack XMG-SK02-111009ANL-LFG-LA1 , LPJ0013BHNL

Name: 10/100Base-Tx UTP RJ45 Jack XMG-SK02-111009ANL-LFG-LA1 , LPJ0013BHNL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJ0013BHNL
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0013BHNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: Tray & Carton&Reel

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 with magnetics, rj45 magnetic jack


Designe PN#:	LPJ0013BHNL	Spc:	XMG-SK02-111009ANL-LFG-LA1
Orientation:	90° Angle (Right)	Interface:	10/100BT AutoMDIX
LED:	Flexible	Samples:	Free

Designe PN#:	LPJ0013BHNL
Spc:	XMG-SK02-111009ANL-LFG-LA1
Orientation:	90° Angle (Right)
Interface:	10/100BT AutoMDIX
LED:	Flexible
Samples:	Free

10/100Base-Tx UTP RJ45 Jack XMG-SK02-111009ANL-LFG-LA1 , LPJ0013BHNL

10/100Base-Tx UTP RJ45 Jack XMG-SK02-111009ANL-LFG-LA1 , LPJ0013BHNL

Key XMG-SK02-111009ANL-LFG-LA1

Spec

LPJ0013BHNL

Price Break	Unit Price	Extended Price
1-5	AF	-
10-50	BE	-
100-500	C-12	-
1,000-2,500	Supportive	Competitive
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

P.N

LPJ0013BHNL

Manufacturer

LINK-PP China

Description

Rj45 Right Angle PCB Jack

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

DESCRIPTION
◆10/100 BASE-TX RJ45 1*1 TAB-DOWN WITH LEDS
INTEGRATED MAGNETICS CONNECTOR ICM.
FEATURES AND BENEFITS
◆ROHS REFLOW SOLDER TEMPERARTURE EATING 260°C,WITH SMT PROCESS.
◆RJ45 1*1 8-PIN WITH INTERNAL MAGNETIC；
◆SUITABLE FOR CAT5 AND CAT6 FAST ETHERNET CABLE OR BETTER UTP.
◆INTERNAL MANETICS:100%ELECTRONICALLY TESTED FOR HI POT AND
FUNCTIONALITY.
ELECTRICAL PERFORMANCE SUMMARY
◆MEETS IEEE802.3 SPECIFICATION AND 350uH MINIMUM OCL WITH 8mA
BIAS CURRENT.
◆HIGH PERFORMANCE FOR MAXIMUM EMI SUPPRESSION.
TEMPERATURE PERFOMANCE
◆STORAGE TEMPERATURE RANGE:-25°C TO +85°C.
◆OPERATION TEMPERATURE RANGE:0°C TO +70°C.
MATERIAL SPECIFICATION
◆SHIELD:BRASS,0.2mm THICKNESS WITH NICKEL PLATED.
◆HOUSING: PA6T(UL-94V0)
◆INSERT BASE: PA46(UL-94V0)
◆CONTACT:PHOSPHOR BRONZE,0.35mm THICKNESS,HARD GOLD PLATED OVER

ELECTRICAL SPECIFICATIONS
◆ALL TEST CONDITIONS@25℃ UNLESS OTHERWISE NOTED.
◆TURN RATIO:
TX, SECONDARY : PRIMARY= 1CT:1CT ±3%.
RX, SECONDARY : PRIMARY= 1CT:1CT ±3%.
◆OCL: 350uH MIN, 8mA DC BIAS CURRENT.
◆INSERTION LOSS: 1-100MHZ-1.0dB MAX.
◆RETURN LOSS: 1MHZ TO 10MHZ :-18dB MIN.
10MHZ TO 30MHZ :-16dB MIN.
30MHZ TO 60MHZ :-14dB MIN.
60MHZ TO 80MHZ :-12dB MIN.
80MHZ TO 100MHZ :-10dB MIN.
◆CROSSTALK: 1MHZ TO 100MHZ :-35dB MIN.
◆COMMON MODE REJECTION: 1-100MHZ :-35dB MIN.
◆HIPOT: 1500V AC 1mA 1S.
◆CAPACITOR: 1000pF ±25%.
◆RESISTANCE: 75OHMS ±20%.
◆RESISTANCE OF COIL: 1.8OHMS MAX, 0.25OHMS MIN.
◆LEFT LED COLOR:GREEN;RIGHT LED COLOR:YELLOW.
