Model Number: LPJE601XDNL
Document: LPJE601XDNL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.2-$0.85
Packaging Details: 54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton
Delivery Time: 3-5 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4300K.PCS/Month
P.N: |
LPJE601XDNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Performance Category: |
CAT 5e |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
Without |
EMl Tabs: |
Without |
Metal-Shield: |
Shielded |
Orientation: |
Vertical(Top Entry) |
P.N: |
LPJE601XDNL |
Number Of Ports: |
1X1 |
Latch: |
Up |
Performance Category: |
CAT 5e |
Number Of Position/contacts: |
8P8C |
Mounting Type: |
THT |
LED Option: |
Without |
EMl Tabs: |
Without |
Metal-Shield: |
Shielded |
Orientation: |
Vertical(Top Entry) |

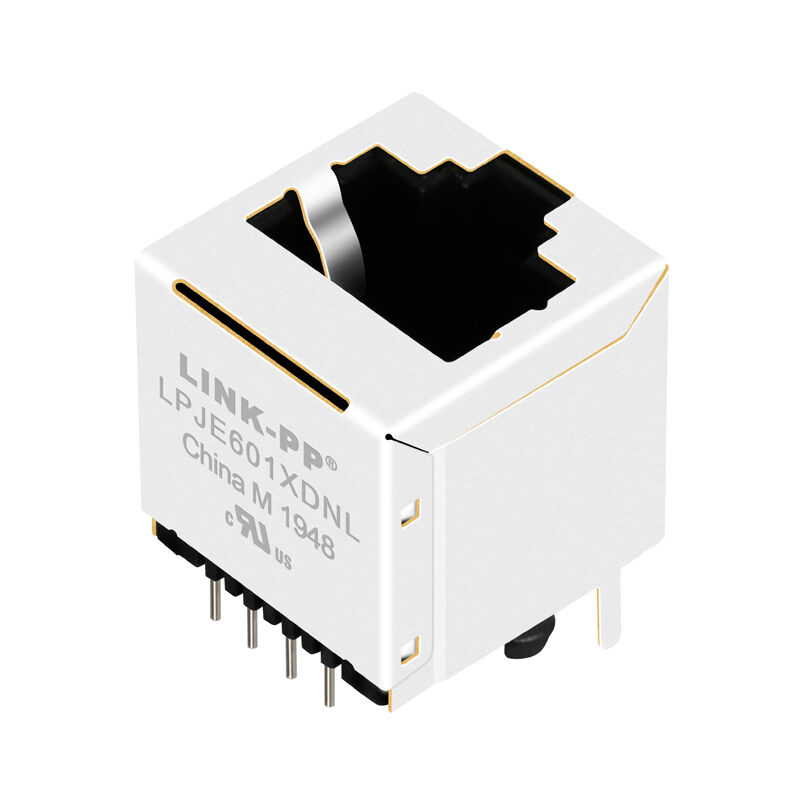

The LPJE601XDNL is a single-port (1x1) vertical RJ45 connector with 8 positions and 8 contacts (8P8C). It is designed for through-hole PCB mounting, ensuring strong mechanical retention and reliable soldering performance in industrial and commercial applications.
The LPJE601XDNL 1x1 Vertical RJ45 Connector is a high-performance 8P8C modular jack designed for 10/100Base-T Ethernet networking applications. Featuring a top entry (vertical) orientation, Tab Up latch, and metal shielding without EMI tabs, this connector is ideal for compact PCB layouts requiring stable signal transmission and robust mechanical durability.
Engineered without integrated magnetics or LEDs, the LPJE601XDNL is a cost-effective and flexible solution for applications where external magnetics are used or visual indicators are not required.
| Category | Parameter | Specification |
|---|---|---|
| Electrical | Voltage Rating | 125 VAC RMS |
| Current Rating | 1.5 A | |
| Contact Resistance | 50 mΩ Max | |
| Insulation Resistance | 500 MΩ Min @ 500V DC | |
| Dielectric Strength | 1000 VAC RMS, 60Hz (1 minute) | |
| Mechanical | Housing Material | LCP, UL94V-0 rated |
| Contact Material | Phosphor Bronze (0.35mm thickness) | |
| Shield Material | Brass (0.20–0.25mm), Tin Plated | |
| Operating Life | ≥ 750 mating cycles | |
| Environmental | Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C | |
| Wave Soldering Temperature | 265°C (Max 5 seconds) |
The top entry orientation enables efficient vertical PCB stacking, making it ideal for compact networking equipment.
Without integrated magnetics, the LPJE601XDNL allows engineers to:
The connector includes a tin-plated brass shield to:
The LPJE601XDNL 1x1 Vertical RJ45 Connector is an excellent choice for engineers seeking a compact, cost-effective, and reliable Ethernet interface without integrated magnetics or LEDs.
No, this connector is a non-magnetic RJ45 jack, requiring external magnetics.
It is designed for 10/100Base-T (Cat 5e) applications, not optimized for Gigabit (1000Base-T).
It features a vertical (top entry) design, ideal for compact PCB layouts.
No, this model comes without LEDs, making it suitable for minimalistic designs.
No, the connector has metal shielding but no EMI grounding tabs.
