Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 85789-1003
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specification: |

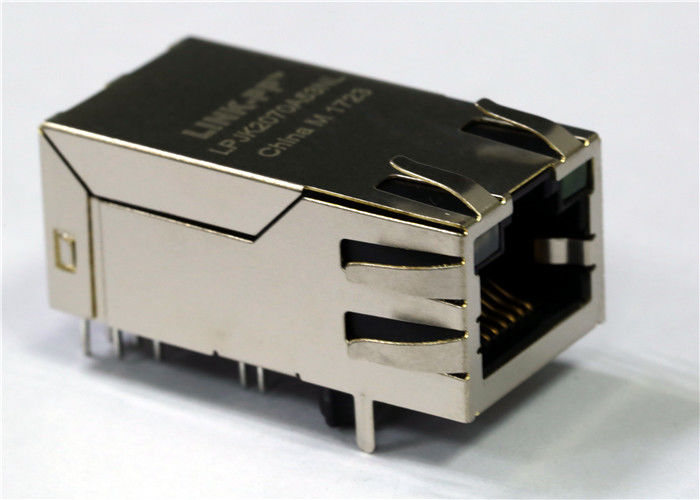

85789-1003 |
Part No: |
LPJK2070A53NL |
Ethernet: |
1 X 10/100/1000 BT Interface |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available Free |
Specification: |
85789-1003 |
Part No: |
LPJK2070A53NL |
Ethernet: |
1 X 10/100/1000 BT Interface |
Mounting: |
Thru-hole |
Termination: |
Solder |
Samples: |
Available Free |
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3af/at specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Numbe E484635
Other LEDs Optional parts(Pin to Pin / Cross / Equivalent / Compatible / Analuge)
| 85789-1001 | 85789-1003 | 85789-1006 | 85789-1007 | 85789-1012 |
| 85789-1013 | 85789-1014 | 85789-1015 | 85789-1017 | 85789-1020 |
| 85789-3006 | 85789-3016 | 85789-3020 | 85789-4008 | 85789-4020 |
