Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11D-MDSD-A-B-FLT2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Discount
Packaging Details: 60PCS/Tray,20 Trays=37*30*30CM=1200PCS=11KG/Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
ARJ11D-MDSD-A-B-FLT2 |
Analogue Part: |
LPJ1006BHNL |
Ethernet: |
10/100 Base-T LAN |
Indicator: |
LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |
Specification: |
ARJ11D-MDSD-A-B-FLT2 |
Analogue Part: |
LPJ1006BHNL |
Ethernet: |
10/100 Base-T LAN |
Indicator: |
LEDs |
Mounting: |
R/A Shield |
Samples: |
Available Free |

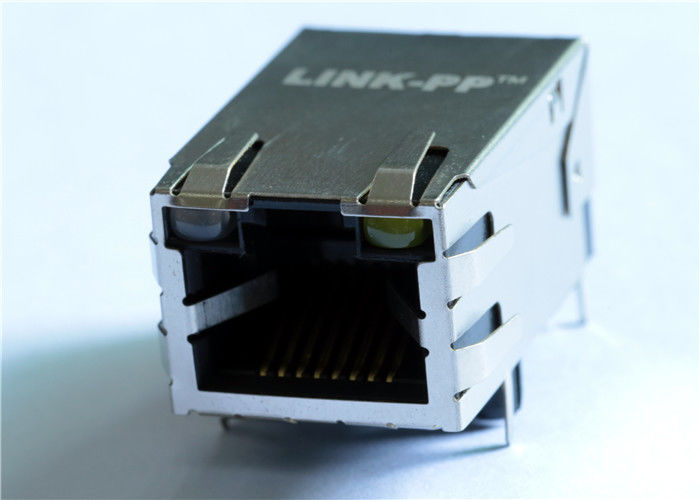

LPJ1006BHNL Single 10/100 BASE-TX Filtered Connector Integrated latch Up
LED Support Auto MDIX InLINE PCB
Available with or without LED
• Suitable CAT 5 & 6 cable and UTP
• Comply IEEE 802.3u
• LAN Magnetic with RJ45
• Suitable for RoHS compliant
MODEL NO. : ARJ11D-MDSD-A-B-FLT2 Analogue Pin to Pin Equivalent Cross Alternate
FEATURE :
◎ RoHS Compliant
◎ Fully shielded magnetics protect data from internally generated digital noise
◎ Reduces the overall length of the signal path for improved common mode performance
◎ Implements full common mode termination scheme with used and unused twisted
pairs
◎ Meets IEEE802.3 Baseline Wander Compensation specification
◎ Integrates high voltage capacitor to chassis ground
◎ Supports all major transceivers with matched turns ration and complete integration of
specified termination
◎ Design for 100base-tx transmission over UTP-5 cable
◎ Operating TEMP. range: -0℃ to +70℃
◎ Storage TEMP. range:-40℃ to +85℃
◎ Primary OCL inductance: 350μH MIN. at 100KHz/0.1Vrms with 8mA DC bias
◎ With the LED lamp
