Highlight:
                                                                                                                                                                                                                                                rj45 smt connector, ultra low profile jack


Specis:	XMS-S1B201ZCA	OEM PN:	LPJ19111CNL
Applications:	10/100 Base-T	Mounting Type:	Surface Mount
Termination:	Solder	Samples:	Available

Specis:	XMS-S1B201ZCA
OEM PN:	LPJ19111CNL
Applications:	10/100 Base-T
Mounting Type:	Surface Mount
Termination:	Solder
Samples:	Available

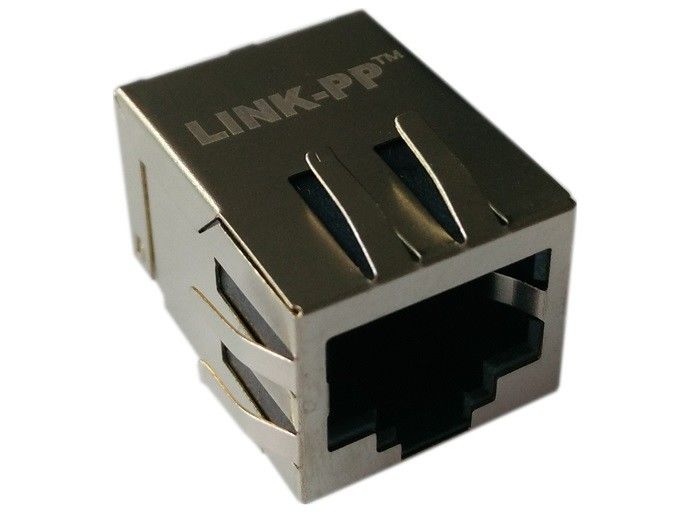

XMS-S1B201ZCA SINGLE SMD RJ45 CONNECTOR Magnetic 10/100M Inside

XMS-S1B201ZCA SINGLE SMD RJ45 CONNECTOR Magnetic 10/100M Inside

XMS-S1B201ZCA

Surface Mount Rj45 Connector

SMD Rj45 Connector

SMT Rj45 Jack

Feature

Suitable for Category 5 & 6 Fast Ethernet Cable or better UTP.
Meets or exceeds IEEE 802.3 standard for 10/100 Base-Tx.
350 µH minimum OCL with 8 mA bias current.

Minimum 1500 Vrms isolation Voltage per IEEE 802.3 requirement.
All materials are RoHS and UL94 V-0 compliant.
RoHS peak solder rating 260°C,5-10sec

XMS-S1B201ZCA SINGLE SMD RJ45 CONNECTOR Magnetic 10/100M Inside 0

SINGLE SMD RJ45 CONNECTOR MODULE WITH 10/100 BASE-TX MAGNETICS
P/N: XMS-S1B201ZCA Cross by pin to pin LPJ19111CNL
