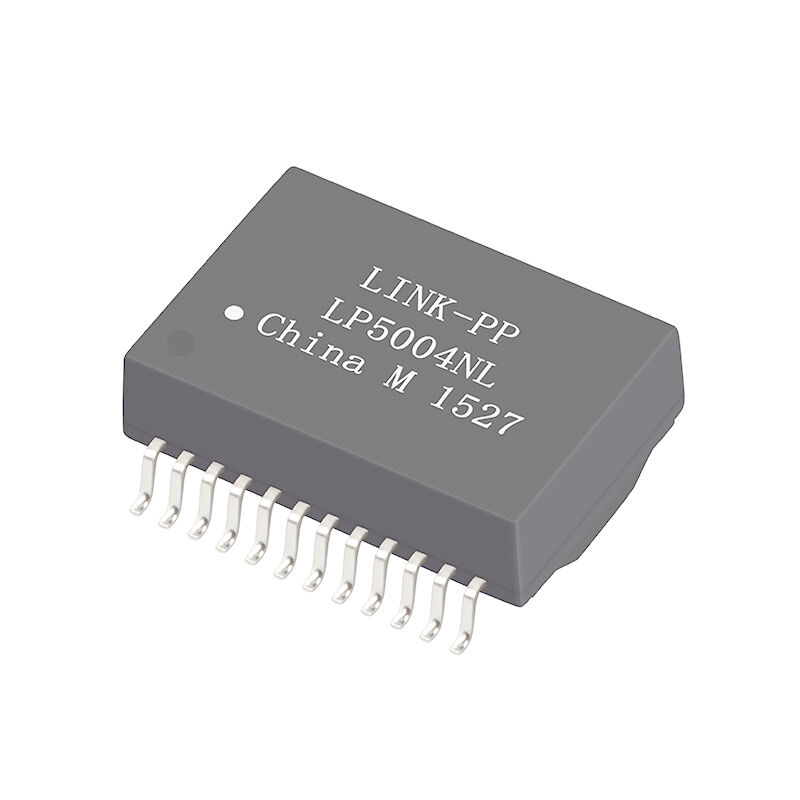

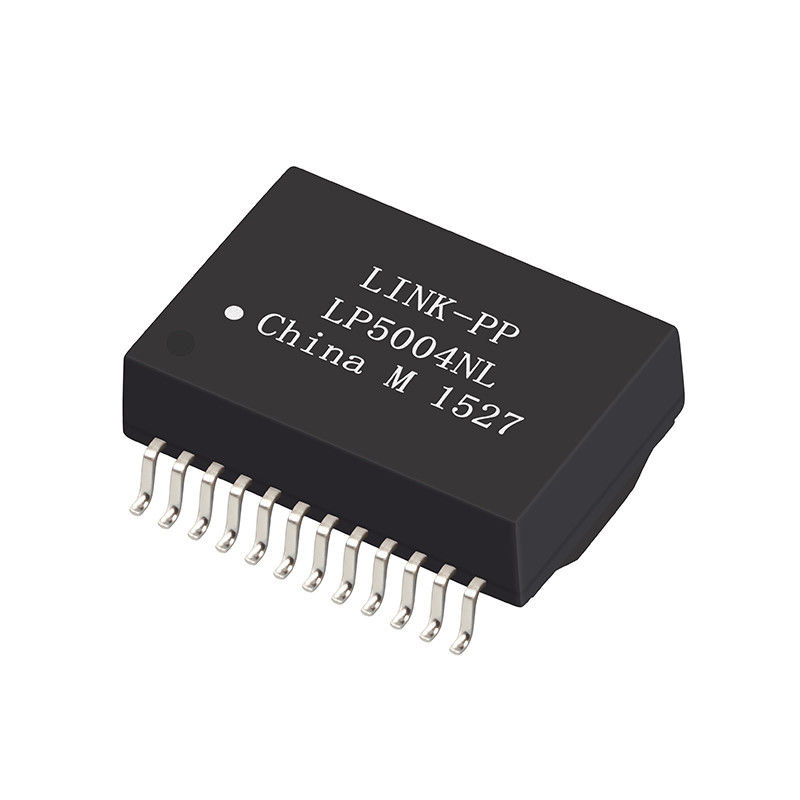

LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD

LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD
LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD

Large Image :  LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP5004NL
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description
Specifications: LP5004NL P/N: LP5004NL
Ethernet: 1x10/100Mbps Mounting: SMD
Measure: 17.70x15.80x6.60mm Samples: Free
Highlight:

10/100base-t magnetics

,

gigabit magnetics transformer

LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD


1. 1000Base-T Magnetics Transformer
2. Isolation Voltage:1500Vrms
3. 10/100/1000Mbps Ethernet Isolation Transformer

4. 24 pins Surface Mounting Transformer

5. LINK-PP LP5004NL Magnetic for Gigabit Ethernet

LP5004NL 1000Base-T Magnetics Transformer Single Port 24pins SMD 0

Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side


Applications



Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage



1100 staff,



100% test

Flexible delivery time

LP5004ANLE
LP5004ANL
LP5004NL
LP5004NLE
LP5005ANL
LP5005NLE
LP5006ANL
LP5007ANL

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: LINK-PP Global

Tel: 86-752-3322915

Send your inquiry directly to us (0 / 3000)
