SMT Vertical RJ45 Jack 8P8C LPJE660DNL

China SMT Vertical RJ45 Jack 8P8C LPJE660DNL supplier
SMT Vertical RJ45 Jack 8P8C LPJE660DNL supplier SMT Vertical RJ45 Jack 8P8C LPJE660DNL supplier

Large Image :  SMT Vertical RJ45 Jack 8P8C LPJE660DNL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH,RoHS
Model Number: LPJE660DNL

Payment & Shipping Terms:

Minimum Order Quantity: 1200
Price: Supportive
Packaging Details: Tab&Reel
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: LPJE660DNL Equivalent: LPJE660DNL
Mounting: SMD,Vertical Application: Cat5
Termination: Solder LEDs: None

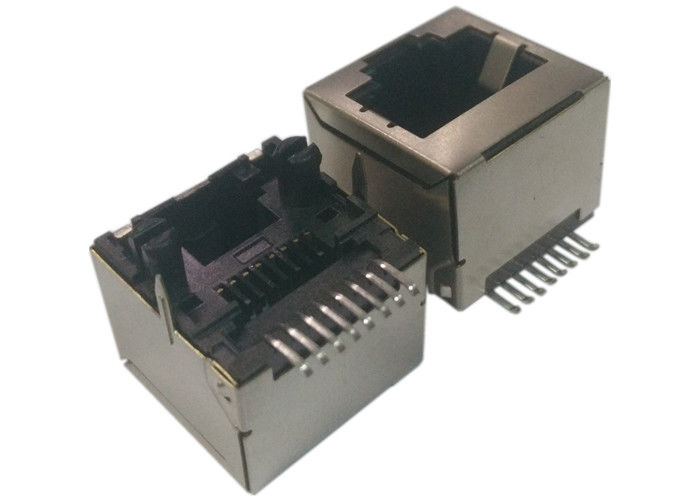

SMT Vertical RJ45 Jack 8P8C LPJE660DNL Top Entry 180 D



  • Vertical SMT Rj45 8 Position Jack Without Magnetics Inside
  • Top Entry SMD Rj45 Modular Jack With Magnetic Transformers outside
  • 8P8C SMD 180 Degree Connectivity
  • LPJE660DNL  LINK-PP Jack
  • UL Certification: File Number E484635



1. MATERIAL:
HOUSING - HIGH TEMP. THERMOPLASTIC - LCP, COLOR: SEE TABLE, UL94V-0.
TERMINALS - 0.30 THICK PHOS BRONZE PLATED WITH
2.03µm MIN THICK MATTE TIN IN SOLDER AREA.
GOLD (SEE TABLE) IN LOCALIZED PLATE AREA OVER
1.27µm MIN THICK NICKEL.
SHIELD - (SEE TABLE) 0.196 THK BRASS PREPLATED WITH 2.03µm-3.81µm
THICK MATTE TIN OVER 0.76µm-2.03µm NICKEL
UNDERPLATE, OR 0.76-2.03µm NICKEL WITH SELECTIVE
TIN PLATED SOLDER TABS
2. JACK CAVITY CONFORMS TO FCC RULES AND
REGULATIONS PART 68, SUBPART F.
SUGGESTED PANEL OPENING DIMENSIONS. SEE
APPLICATION SPEC. 114-2154 FOR PANEL THICKNESS
AND POSITION RECOMMENDATIONS
SUGGESTED CLEARANCE BETWEEN TOP OF CONNECTOR
AND TOP PANEL OPENING
PACKAGED: POCKET TAPE & REEL (PER EIA 481 SPECIFICATIONS)
POCKET TAPE WIDTH - 44mm
POCKET PITCH - 24mm
POCKET DEPTH - 16.7mm
CLEAR COVER TAPE, PSA
CLEAR COVER TAPE TRAILER - 1220mm, WRAPPED ON REEL HUB
PLASTIC REEL - 381mm DIAMETER
PRODUCT QUANTITY - 200 PIECES PER REEL
ZERO INSERTION FORCE POST WITH RECOMMENDED PCB LAYOUT
DATUM ESTABLISHED BY CUSTOMER.
CONNECTOR SHOULD BE POSITIONED THRU PANEL CUTOUT AS
SHOWN TO SUPPORT TOP OF MODULAR JACK FOR STRAIN RELIEF.
MANUFACTURING DATE CODE LOCATED APPROXIMATELY AS SHOWN.
FIRST 2 DIGITS ARE YEAR, SECOND 2 DIGITS ARE WORK WEEK,
LAST DIGIT IS THE DAY OF THE WEEK
