HX5004NL 1000Base-T Ethernet Magnetic Transformers Cross By LP5004NL

China HX5004NL 1000Base-T Ethernet Magnetic Transformers Cross By LP5004NL supplier

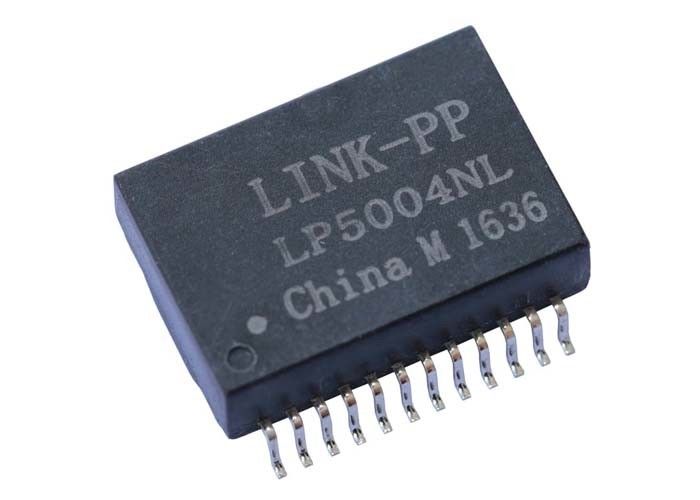

Large Image :  HX5004NL 1000Base-T Ethernet Magnetic Transformers Cross By LP5004NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP5004NL

Payment & Shipping Terms:

Minimum Order Quantity: 1600/Carton
Price: Supportive
Packaging Details: Tape & Teel
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item: HX5004NL Cross P.N: LP5004NL
Pin No: 24 Pins Series: Single Port GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1500V
Samples: Free Offer Cross Part: HX5004NL = LP5004NL

HX5004NL 1000Base-T Magnetic Transformer Cross By LP5004NL



10/100 Base -T Magnetics Transformer Modules SMD, Rohs
LINK-PP Part Number LP5004NL
Pulse Part Number HX5004NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Number of Ports SINGLE
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.7
Package Width (Inches) 0.496
Package Width (mm) 12.6
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Features

■ Ethernet Magnetic Transformers LP5004NL Equivalent to HX5004NL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables


HX5004NL 1000Base-T Ethernet Magnetic Transformers Cross By LP5004NL

Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C

HX5004NL 1000Base-T Ethernet Magnetic Transformers Cross By LP5004NL
