Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

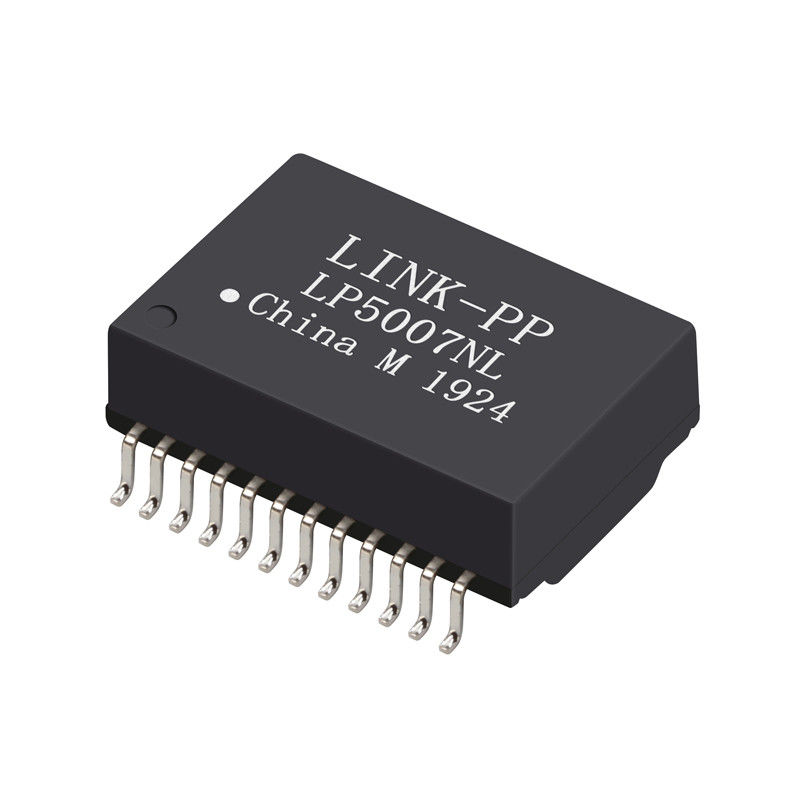

Model Number: LP5007NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
30FB-22NL |
Cross P.N: |
LP5007NL |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Termination Style: |
SMD/SMT |
Isolation Voltage:: |
1500V |
Samples: |
Free Offer |
Cross Part: |
30FB-22NL = LP5007NL |
Lifecycle: |
More Than 20Years |
Item: |
30FB-22NL |
Cross P.N: |
LP5007NL |
Pin No: |
24 Pins |
Series: |
Single Port GigE Transformer |
Termination Style: |
SMD/SMT |
Isolation Voltage:: |
1500V |
Samples: |
Free Offer |
Cross Part: |
30FB-22NL = LP5007NL |
Lifecycle: |
More Than 20Years |
Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C
|
Mfr Package Description
|
ROHS COMPLIANT
|
|
REACH Compliant
|
Yes
|
|
EU RoHS Compliant
|
Yes
|
|
Status
|
Active More than 20 Years
|
|
Transformer Type
|
DATACOM TRANSFORMER
|
|
Application
|
LAN; 10/100/1000 BASE-T; ETHERNET
|
|
Isolation Voltage
|
1500.0 V
|
|
LINK-PP Cross
|
LP5007NL Series Equivalent Cross
|
|
File Available
|
Datasheet / PDF , 3D Step / IGS
|
|
Manufacturer Series
|
PT61020EL Cross Pin to Pin Analogue
|
|
Mounting Feature
|
SURFACE MOUNT
|
|
Number of Functions
|
4
|
|
Operating Temperature-Min
|
-40.0 Cel
|
|
Operating Temperature-Max
|
85.0 Cel
|
|
Packing Method
|
TAPE & REEL 350pcs/Reel
|
|
Physical Dimension
|
L17.62XB12.2XH6.0 (mm)
|
|
Primary Inductance
|
350.0 µH
|
|
Terminal Finish
|
TIN
|
|
Turns Ratio (Np:Ns)
|
1CT:1; 1CT:1
|
|
Height
|
6.0 mm
|
|
Length
|
17.62 mm
|
|
Width
|
12.2 mm
|
|
Additional Feature
|
HIGHT DIMENSION INCLUDES TEMINAL ALSO
|
