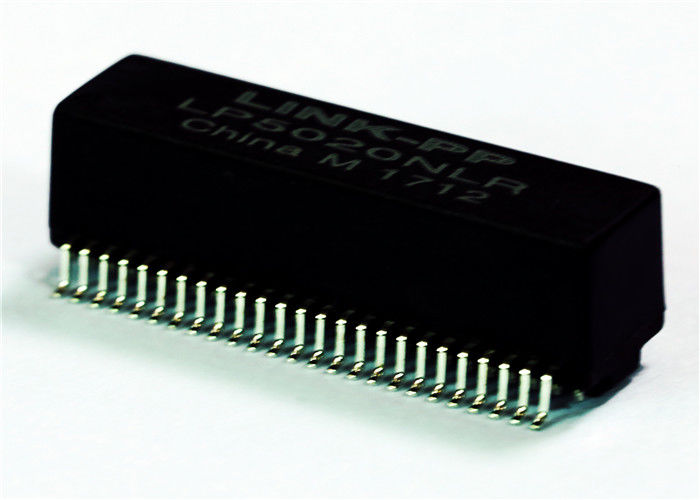

H5020FNL Substitute 1000Base-T Magnetic Dual Gigabit Ethernet LP5020NLR

China H5020FNL Substitute 1000Base-T Magnetic Dual Gigabit Ethernet LP5020NLR supplier

Large Image :  H5020FNL Substitute 1000Base-T Magnetic Dual Gigabit Ethernet LP5020NLR

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP5020NLR

Payment & Shipping Terms:

Minimum Order Quantity: 1000/2000/5000
Price: Supportive
Packaging Details: Tape & Teel
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item: H5020FNL Cross P.N: LP5020NLR
Pin No: 50 Pins Series: Dual Port GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1500V
Samples: Free Offer Cross Part: H5020FNL = LP5020NLR

H5020FNL Substitute 1000Base-T Magnetic Dual Gigabit Ethernet LP5020NLR



Features

■ Ethernet Magnetic Transformers LP5020NLR Equivalent to H5020FNL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T Compatible
■ Designed for Long Haul Dual Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)




Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature
.................................. -40° C to +85 °C
